Subwoofer Assembly - Remove And Replace: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove RH side trunk trim Trim - Rear Trunk - Side - RH (Remove And Replace)

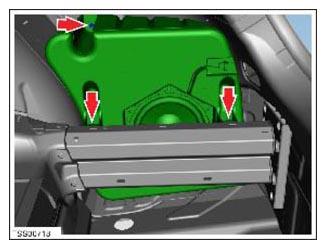

  2. Remove screws (x3) securing subwoofer enclosure to body (torque 7 N.m).
    G14980007Courtesy of TESLA, INC.
  3. Disconnect subwoofer harness connection.
  4. Remove subwoofer from vehicle.
