Microphone - Bluetooth - Remove And Replace: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.

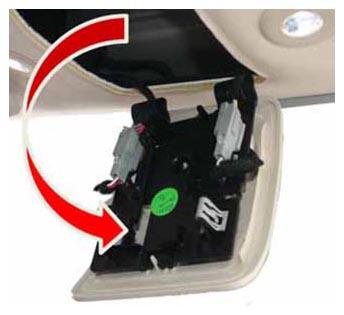

  1. Release the front of the exterior overhead console and pull downward.
    CAUTION: Do not damage the harness connections on the inside of the overhead console.
    G14980059Courtesy of TESLA, INC.

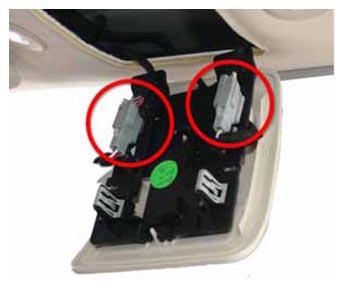

  2. Disconnect the 2 harness connections from the inside of the overhead console.
    G14980060Courtesy of TESLA, INC.
  3. Remove the overhead console.

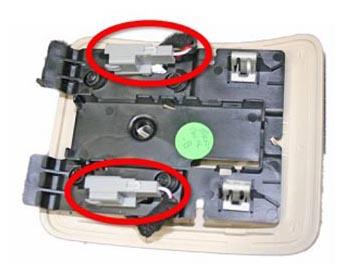

  4. Slide the connectors off of the microphone bracket.
    G14980061Courtesy of TESLA, INC.

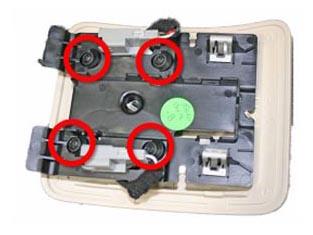

  5. Release the screws (x4) that secure the microphone bracket to the overhead console.
    G14980062Courtesy of TESLA, INC.

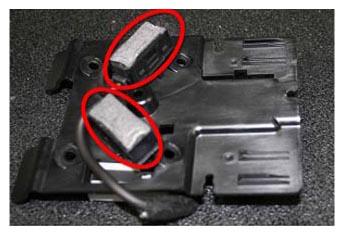

  6. Remove the affected microphone.
    G14980063Courtesy of TESLA, INC.
