Service Panel - Instrument Panel - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the LH front door and lower the LH front window.
  2. Release the clips (x4) and tabs (x4) that attach the instrument panel service panel to the vehicle, and then disconnect the temperature sensor connector.

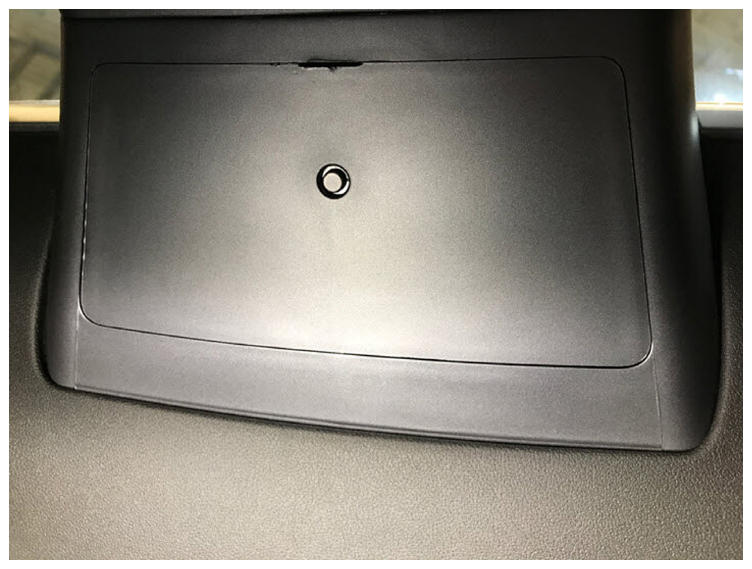

    G14838616Courtesy of TESLA, INC.

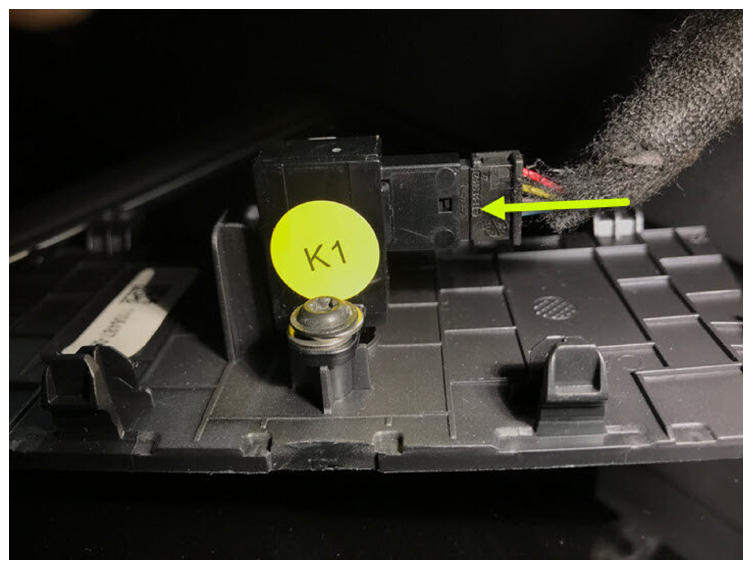

    G14838615Courtesy of TESLA, INC.
  3. Remove bolts (x2) that attach the cabin temperature sensor to instrument panel service panel, and then remove the sensor from the service panel.

    0.7 N.m (6 lbs-in)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit

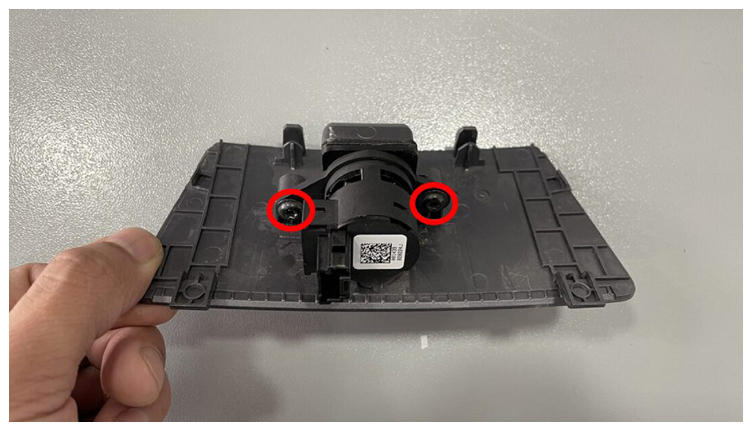

    G14838611Courtesy of TESLA, INC.

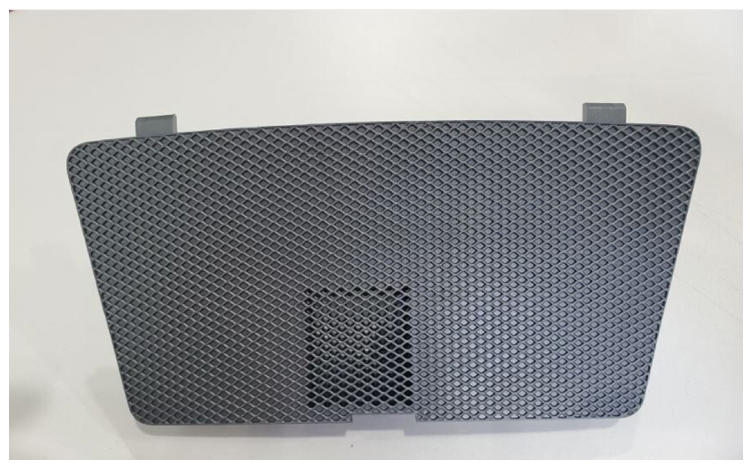

    G14838612Courtesy of TESLA, INC.
