USB Hub - Center Console - Front - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console. See Center Console (Remove and Install) .
    NOTE: It is not necessary to remove the center console assembly from the vehicle; maneuver the assembly away from the instrument panel to access the USB hub.
  2. Disconnect the electrical wiring harness connector from the USB hub.
    G14838913Courtesy of TESLA, INC.
  3. Release the clips that attach the electrical harness to the USB hub.
    G14838914Courtesy of TESLA, INC.

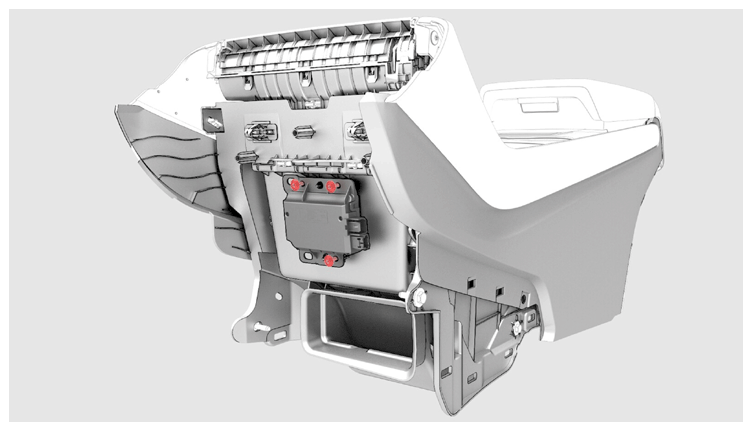

  4. Remove the bolts that attach the USB hub to the center console, and then remove the USB hub from the center console.

    1.1 N.m (.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 4 in extension
    G14838915Courtesy of TESLA, INC.

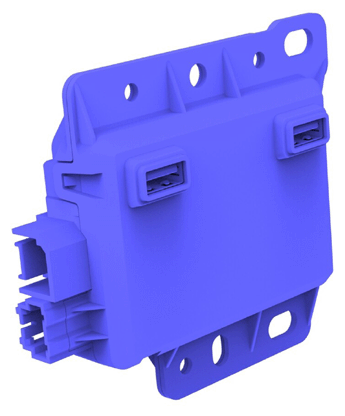

    G14838916Courtesy of TESLA, INC.
