USB Hub - Center Console - Front - Remove And Replace: Install

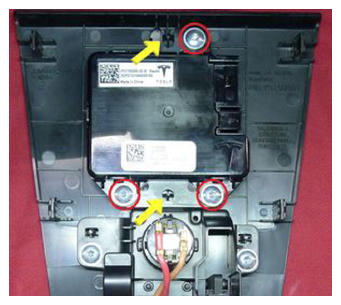

Position the front USB hub onto the service panel assembly, and then install the screws (x3) that attach the hub to the assembly.
1.5 N.m (1.1 ft-lbs)

NOTE: Use the alignment tabs to ensure the USB hub is correctly positioned.

Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.

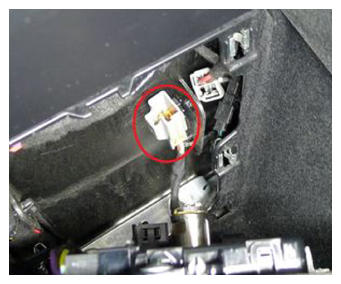

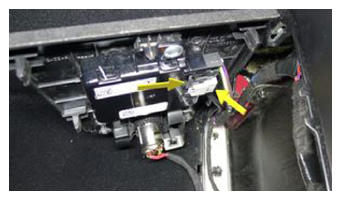

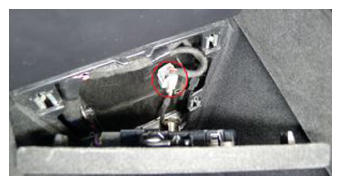

Position the center console service panel assembly into the center console, and then connect the electrical connectors (x3).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

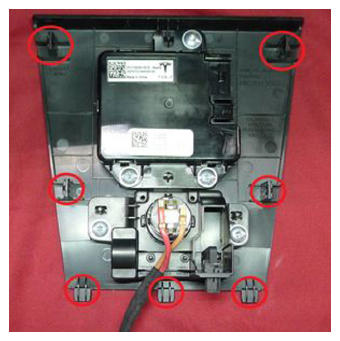

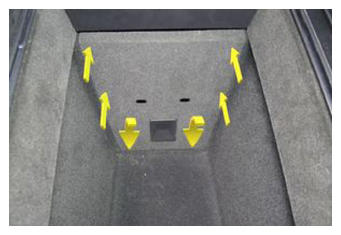

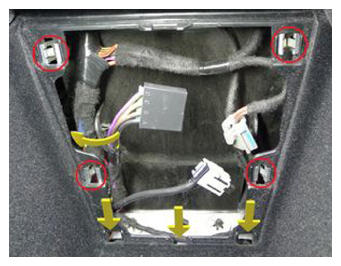

Secure the alignment tabs at the bottom of the center console service panel assembly to the center console, and then secure the clips (x4) that attach the assembly to the center console.
NOTE: Ensure connector X1131 and X881 is positioned to the right of the main harness for USB hub clearance.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Close the center console lid, cupholder and sliding tray.
Move the RH front seat to the original position.
Raise the RH front window and close the RH front door.
