Mount - Bushing Carrier - Front Drive Unit - RH - Remove And Replace: Install

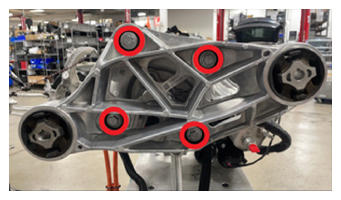

  1. With the help of an assistant, install the RH side bushing carrier to the front drive unit, install and hand tighten the bolts (x4) that attach the bushing carrier to the drive unit, then tighten the bolts in the sequence shown.

    60 N.m (44.2 ft-lbs) +50 deg

    G15106449Courtesy of TESLA, INC.

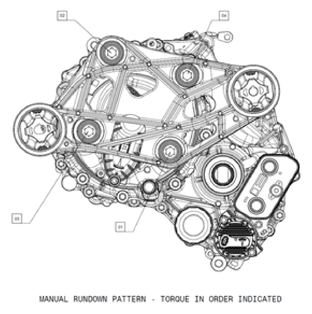

    Fig 1: Bushing Carrier To Drive Unit Bolts Tightening Sequence
    G15106450Courtesy of TESLA, INC.
  2. Install the front drive unit into the vehicle. See DRIVE UNIT - FRONT (REMOVE AND INSTALL) .
  3. Install the LH and RH front halfshafts. See HALFSHAFT - FRONT DRIVE UNIT - LH (REMOVE AND REPLACE)  and HALFSHAFT - FRONT DRIVE UNIT - RH (REMOVE AND REPLACE) .
  4. Install the front subframe. See Subframe Assembly - Front (Remove and Install) .
  5. Install the front fascia valance. See Valance - Front Fascia (Remove and Replace) .
  6. Install the HV battery. See HV Battery (AWD) (Remove and Install) .
  7. Install the front skid plate. See Skidplate - Front (Remove and Replace) .
  8. Install the front aero shield panel. See Panel - Aero Shield - Front (Remove and Replace) .
  9. Install the LH and RH shear plates. See Shear Plate - Rear Subframe - LH (Remove and Replace) .
  10. Install the mid aero shield panel. See Panel - Aero Shield - Mid (Remove and Replace) .
  11. Install the LH and RH front wheels. See Wheel (Remove and Install) .

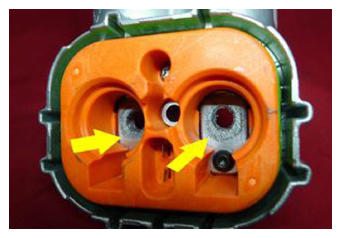

  12. Use an alcohol wipe to clean the charge port busbar connector lead contact surfaces of residual Penetrox, and allow at least one minute to dry.
    G15106452Courtesy of TESLA, INC.

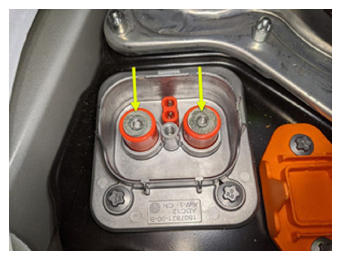

  13. Use an alcohol wipe to clean the DC input HV header terminal contact surfaces of residual Penetrox, and allow at least one minute to dry.
    G15106453Courtesy of TESLA, INC.

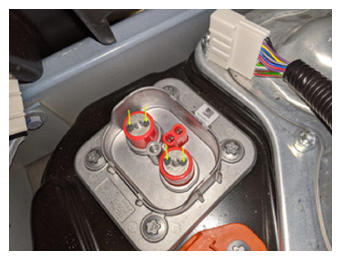

  14. Apply two small drops of Penetrox onto each DC input HV header terminal contact surface, and spread evenly.
    G15106454Courtesy of TESLA, INC.

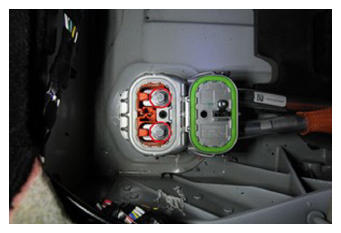

  15. Install the charge port busbar connector onto the DC input HV header, and then install the bolts (x2) that attach the connector to the header.

    9 N.m (6.6 ft-lbs)

    G15106455Courtesy of TESLA, INC.

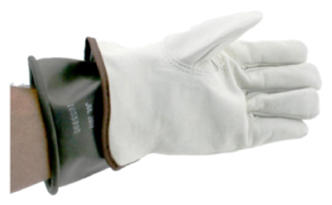

  16. Put on the HV insulating gloves and leather over gloves.
    G15106456Courtesy of TESLA, INC.

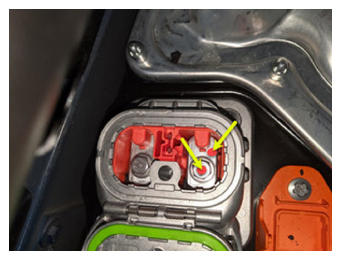

  17. Use the Hioki resistance meter to measure the resistance between the charge port busbar connector lead and the DC input HV header bolt head.
    NOTE: The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ). If the measured resistance is above 0.195 mΩ (195 μΩ), escalate to Service Engineering.
    NOTE: If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again. If after 4 attempts the resistance is consistently lower than 0.050 mΩ (50 μΩ), the test has passed; continue to the next step.
    G15106457Courtesy of TESLA, INC.
  18. Repeat step  17 for the other charge port busbar connector lead and DC input HV header bolt head.
  19. Remove the HV insulating gloves and leather over gloves.
    G15106458Courtesy of TESLA, INC.

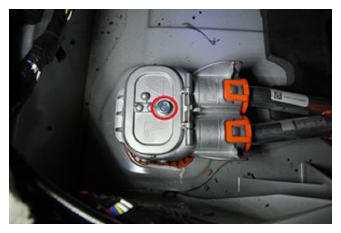

  20. Install the bolt that secures the charge port busbar connector access door.

    9 N.m (6.6 ft-lbs)

    G15106459Courtesy of TESLA, INC.

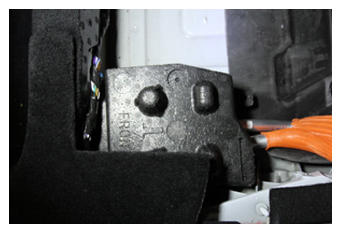

  21. Install the DC input HV header foam block.
    G15106460Courtesy of TESLA, INC.
  22. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  23. Install the LH and RH 2nd row seat side bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .

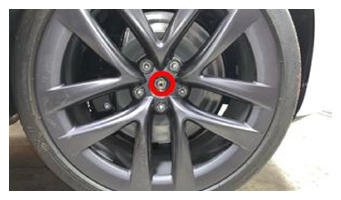

  24. Tighten the LH and RH front axle nuts.

    245 N.m (180.7 ft-lbs)

    G15106461Courtesy of TESLA, INC.
  25. Fasten the clip that attaches the frunk harness to the front drive unit.
    G00657495Courtesy of TESLA, INC.
  26. Connect the frunk harness to the front drive unit harness connector, and then push in the red tab to secure.
    G00657494Courtesy of TESLA, INC.
  27. Install the bolt that attaches the ground strap to the front drive unit.

    5.5 N.m (4.1 lbs-ft)

    NOTE: The bolt is captive to the ground strap.
    G15106441Courtesy of TESLA, INC.
  28. Remove the steering wheel lock, and then remove the protector sheet from the driver seat.
    G15106360Courtesy of TESLA, INC.
  29. Perform a cooling system vacuum refill. See Cooling System (Vacuum Refill) .
  30. Connect LV power. See LV Power (Disconnect and Connect) .
  31. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 (Connect and Disconnect) .
  32. Perform a cooling system air purge. See Cooling System (Partial Refill and Bleed) .
  33. Disconnect the laptop with Toolbox 3 from the vehicle. See Toolbox 3 (Connect and Disconnect) .
  34. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  35. Install the LH and RH rocker panel moldings. See Molding - Rocker Panel - LH (Remove and Replace) .
  36. Install the LH and RH rocker panel scuff plates. See Scuff Plate - Rocker Panel - LH (Remove and Replace) .
  37. Remove the vehicle from the 2 post lift. See Raise Vehicle - 2 Post Lift .
  38. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity. See Alignment Requirement - Suspension .
