Center Console Assembly - Remove And Install: Install

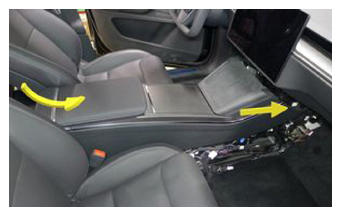

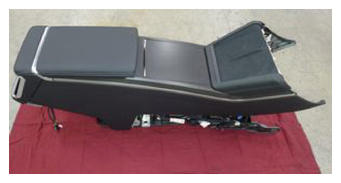

With an assistant, install the console assembly on the vehicle:
NOTE: x3 datums

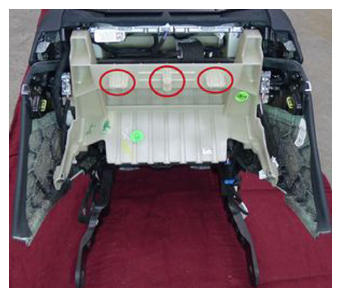

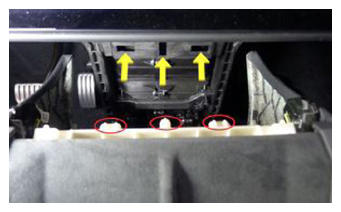

NOTE: Carefully maneuver the front of the center console assembly under and into the instrument panel carrier and lower the rear of the center console into place. Align the datums into the instrument panel carrier and engage forward.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

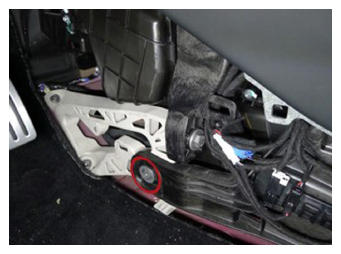

Install the bolt that attaches the LH toeboard lower bracket to the center console. Repeat this step for the RH bracket.
Torque 10 N.m

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

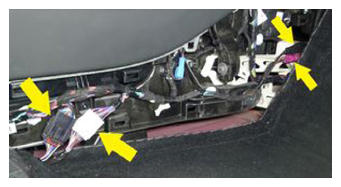

Fasten the harness clips (x2), and then connect the center console electrical connectors (x4).
NOTE: Make sure all connector locks are engaged.

Courtesy of TESLA, INC.

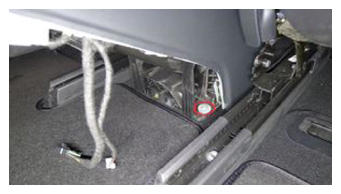

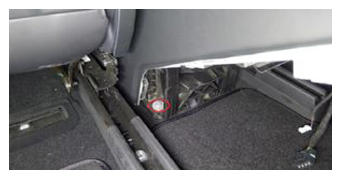

Install the bolts (x2) that attach the LH and RH console carrier center bracket.
Torque 12 N.m

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH and RH center console side panel carpets. See Carpet - Side Panel - Center Console - LH (Remove And Replace) .
Install the LH and RH floor mats.
Move the driver and front passenger seats fully forward.

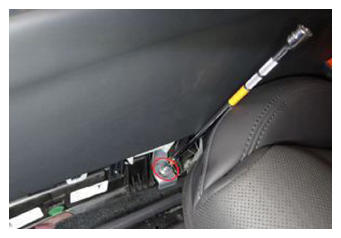

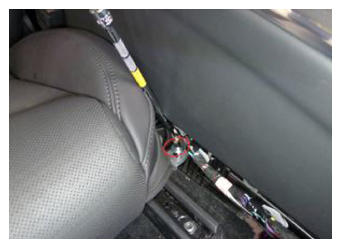

Install the bolts (x2) that attach the LH and RH rear console carrier.
Torque 12 N.m

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the center console lower rear panel. See Panel - Lower Rear - Center Console (Remove And Replace) .
Restore the driver and front passenger seats back to their original position.
Raise all windows and close all doors.
