Wiper Module - Remove And Replace: Install

  1. Position the wiper module to the vehicle, and then connect the electrical connector to the wiper module. Install the bolts that attach the wiper module to the vehicle.
    NOTE: 3x bolts, 10 mm, 8 N.m
    CAUTION: Carefully pivot the wiper module during installation to avoid damage to windshield.

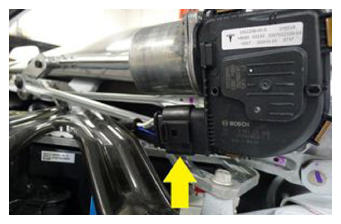

    G15093052Courtesy of TESLA, INC.

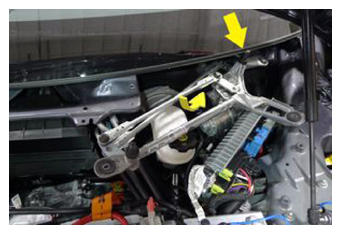

    G15093053Courtesy of TESLA, INC.

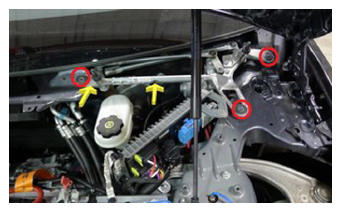

    G15093054Courtesy of TESLA, INC.
  2. Install the LH shock tower V brace. See V Brace - Shock Tower - LH (Remove and Replace) .
  3. Install the wiper cowl screen panel. See Hose - Washer - Cowl Screen (Remove And Replace) .
  4. Install the LH and RH wiper arms. See Wiper Arm - LH (Remove And Replace) .
  5. Install the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove and Replace) .
  6. Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  7. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  8. Use the touchscreen to disable the "Wiper Service Mode".
