Sensor - Level - Windshield Washer Reservoir - Remove And Replace: Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift .
  2. Remove the LH front wheel. See Wheel (Remove and Install) .
  3. Release the clips (x7) that attach the front portion of the LH front wheel house liner to the vehicle.

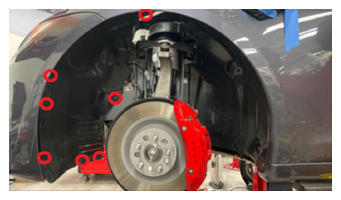

    G15092994Courtesy of TESLA, INC.

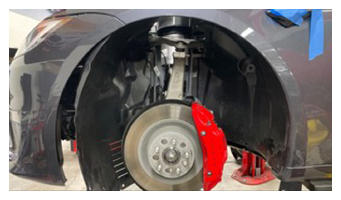

    G15092995Courtesy of TESLA, INC.
  4. Disconnect the washer level sensor electrical connector.

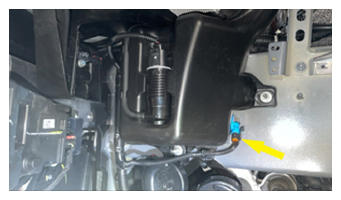

    G15092996Courtesy of TESLA, INC.
  5. Remove the washer level sensor from the washer reservoir.
    NOTE: Carefully pry washer level sensor away from washer bottle and allow washer fluid to drain.

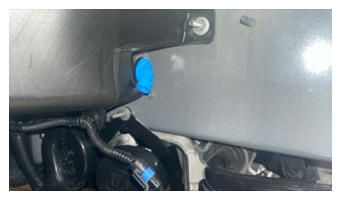

    G15092997Courtesy of TESLA, INC.

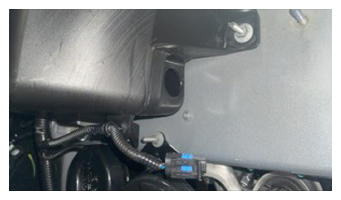

    G15092998Courtesy of TESLA, INC.
  6. Remove the washer level sensor seal from the sensor.
    NOTE: Inspect the seal and replace if damaged.

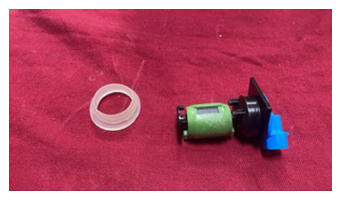

    G15092999Courtesy of TESLA, INC.
