Sensor - Level - Windshield Washer Reservoir - Remove And Replace: Install

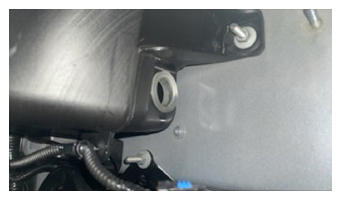

  1. Install the washer level sensor seal to the washer reservoir
    G15093000Courtesy of TESLA, INC.

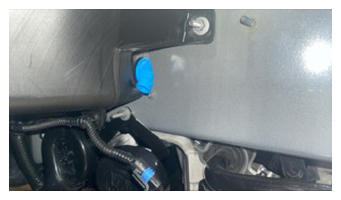

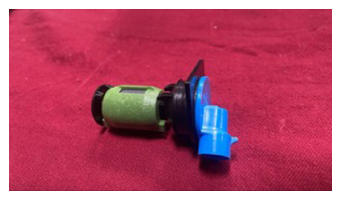

  2. Install the washer level sensor to the reservoir.
    NOTE: Install the washer level sensor to the reservoir with the flat section pointed upward.
    G15093001Courtesy of TESLA, INC.
    G15093002Courtesy of TESLA, INC.

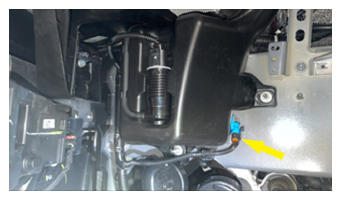

  3. Connect the washer level sensor electrical connector.
    G15093003Courtesy of TESLA, INC.

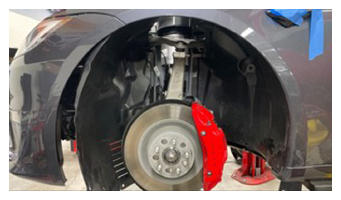

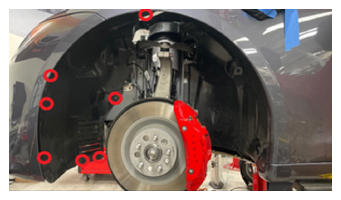

  4. Install the clips that attach the front portion of the LH front wheel house liner to the vehicle.
    G15093004Courtesy of TESLA, INC.
    G15093005Courtesy of TESLA, INC.
  5. Install the LH front wheel. See Wheel (Remove and Install) .
  6. Remove the vehicle from the lift.
  7. Fill the washer fluid reservoir.

    Tip: The reservoir has a capacity of 4.5 liters.
