- Remove the LH and RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace)
.
- Remove the LH and RH sun visor. See Sun Visor - LH (Remove and Replace)
.
- Remove the rear view mirror. See Mirror - Rear View (Remove and Replace)
.
- Remove the quad camera cover. See Quad Camera Cover - Upper (Remove and Replace)
.

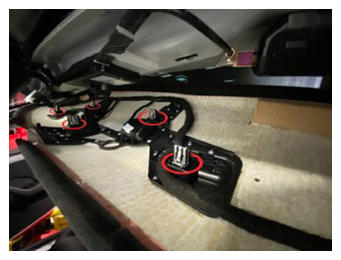

- Release the clips (x5) that attach the headliner at the front of the vehicle.
NOTE:
5x clips
 Courtesy of TESLA, INC.
|

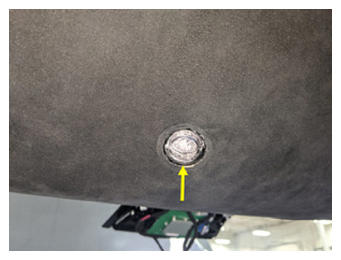

- Remove the LH map light bezel from the headliner.
NOTE:
2x tabs, 1x alignment pin. Gently pry around edge of the bezel to release.
 Courtesy of TESLA, INC.
|

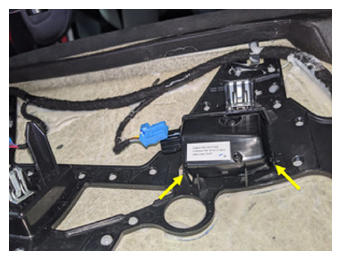

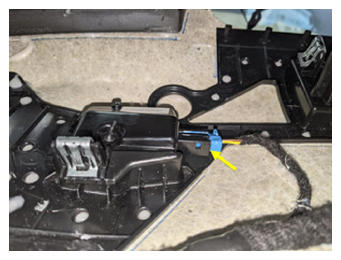

- Disconnect the LH map light electrical connector.
NOTE:
Locking tab viewable from the rear edge of the front headliner.
 Courtesy of TESLA, INC.
|

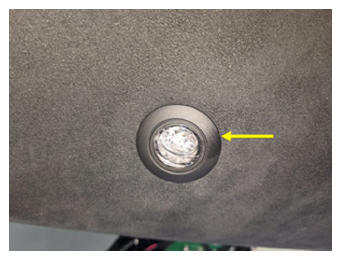

- Remove the LH map light from the headliner.
NOTE:
2x tabs. Push up from interior to aid in releasing tabs.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
