Map Light - LH - Remove And Replace: Install

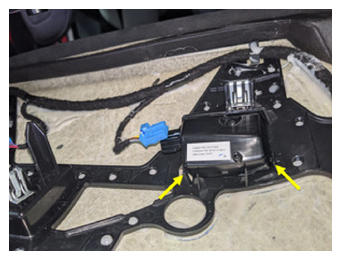

  1. Install the LH maplight to the headliner.
    G15092134Courtesy of TESLA, INC.

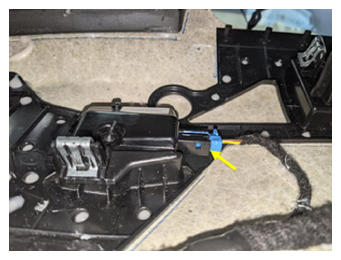

  2. Connect the electrical connector to the LH maplight.
    G15092135Courtesy of TESLA, INC.

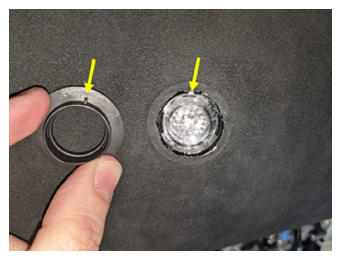

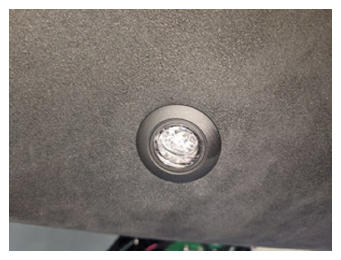

  3. Install the LH maplight bezel to headliner.
    NOTE: Alignment pin should face upward.
    G15092136Courtesy of TESLA, INC.
    G15092137Courtesy of TESLA, INC.

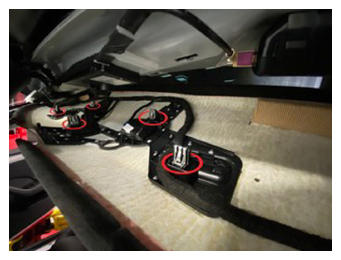

  4. Install the clips (x5) that attach the front portion of the headliner to the vehicle.
    G15092138Courtesy of TESLA, INC.
  5. Install the quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .
  6. Install the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  7. Install the LH and RH sun visor. See Sun Visor - LH (Remove and Replace) .
  8. Install the LH and RH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
