Bracket - Homelink - Remove And Replace: Remove

  1. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .
  2. Remove the homelink module, and then set it aside:
    1. Release the locking tab.
    2. Slide the module to the LH side of the vehicle.

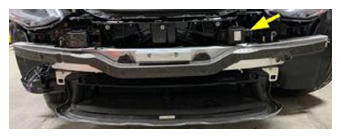

    G15091376Courtesy of TESLA, INC.

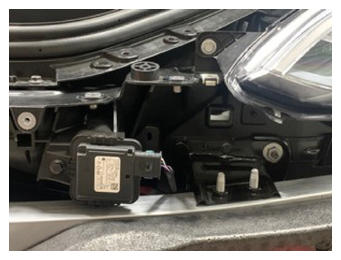

    G15091377Courtesy of TESLA, INC.

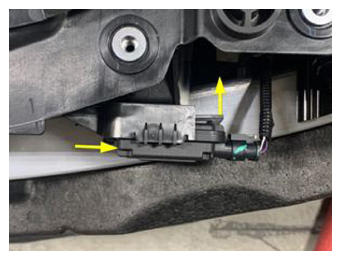

    G15091378Courtesy of TESLA, INC.

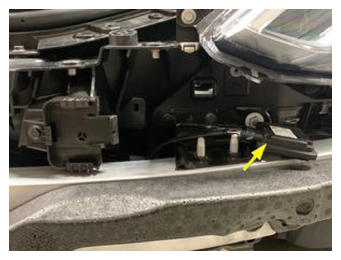

    G15091379Courtesy of TESLA, INC.
  3. Remove the bolt that attaches the homelink bracket to the vehicle, and then remove the bracket from the vehicle.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket

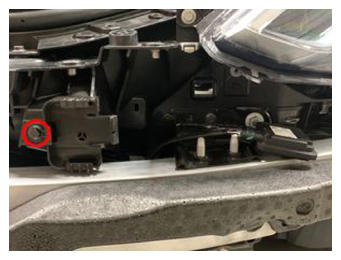

    G15091380Courtesy of TESLA, INC.

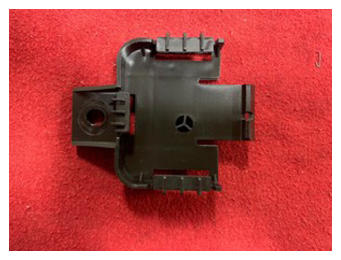

    G15091381Courtesy of TESLA, INC.
