Bracket - Homelink - Remove And Replace: Install

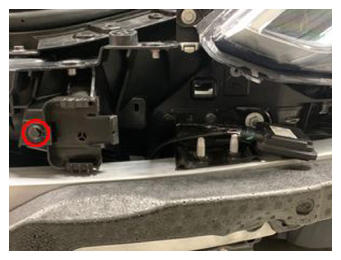

  1. Position the homelink bracket into the vehicle, and then install the bolt that attaches the bracket to the vehicle.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15091383Courtesy of TESLA, INC.

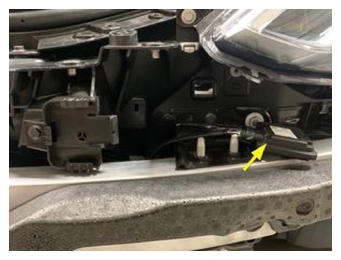

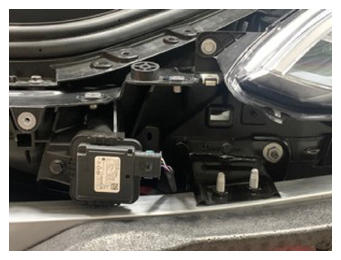

  2. Install the homelink module.

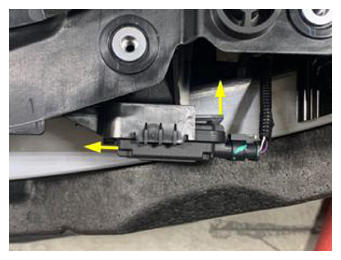

    1. Release the locking tab.
    2. Slide the module to the RH side of the vehicle.
    G15091384Courtesy of TESLA, INC.
    G15091385Courtesy of TESLA, INC.
    G15091386Courtesy of TESLA, INC.
    G15091376Courtesy of TESLA, INC.
  3. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .
