Trunk - Remove and Install: Remove

  1. Remove the trunk lid trim. See TRIM - LID - TRUNK (REMOVE AND REPLACE) .

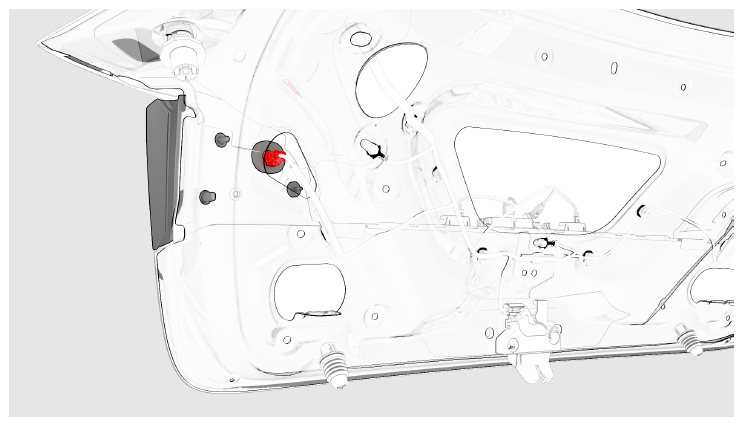

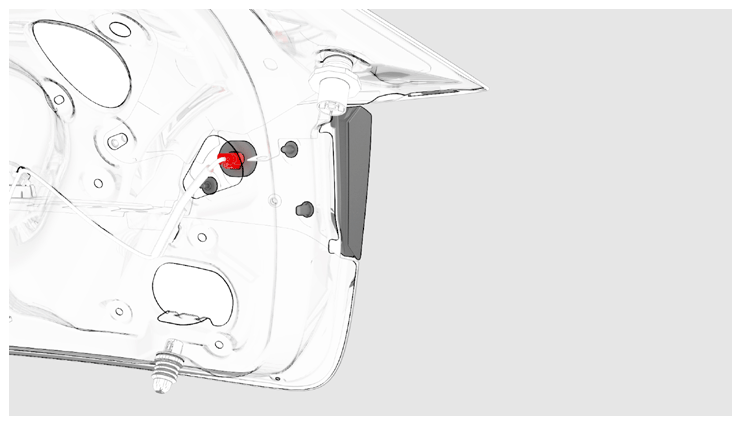

  2. Disconnect the LH and RH rear fog/reverse light electrical connectors.
    G14739093Courtesy of TESLA, INC.
    G14739094Courtesy of TESLA, INC.

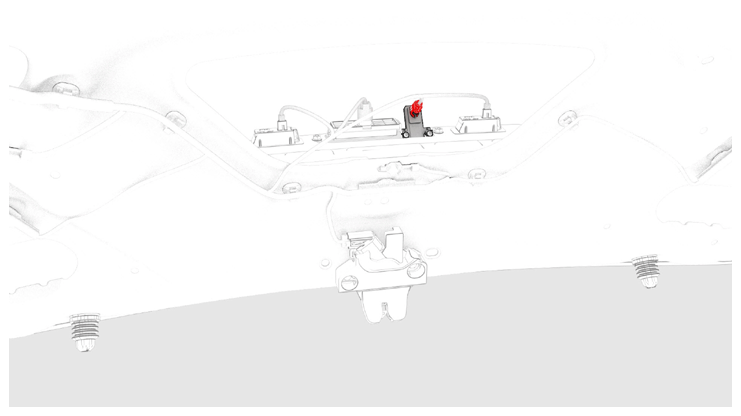

  3. Disconnect the rear facing camera electrical connector.
    G14739095Courtesy of TESLA, INC.

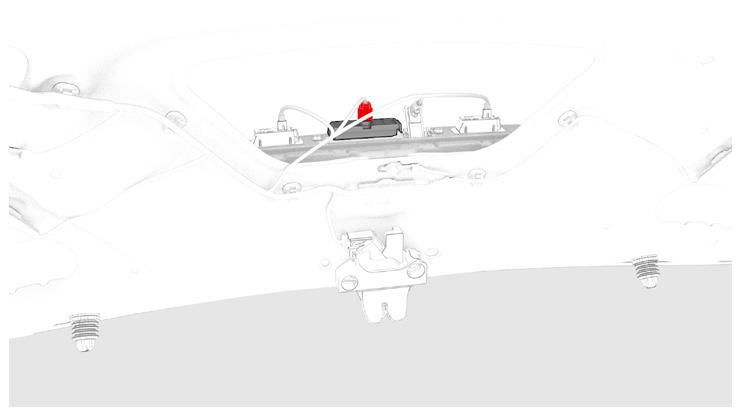

  4. Disconnect the trunk exterior release switch electrical connector.
    G14739096Courtesy of TESLA, INC.

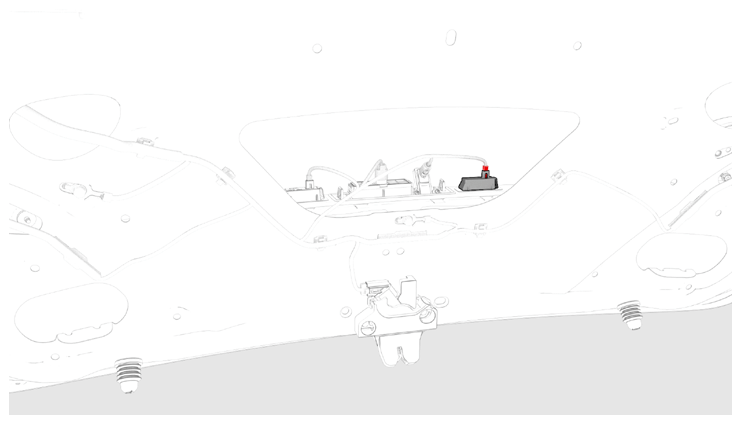

  5. Disconnect the LH and RH license plate light electrical connectors.
    NOTE: LH shown, RH similar.
    G14739097Courtesy of TESLA, INC.

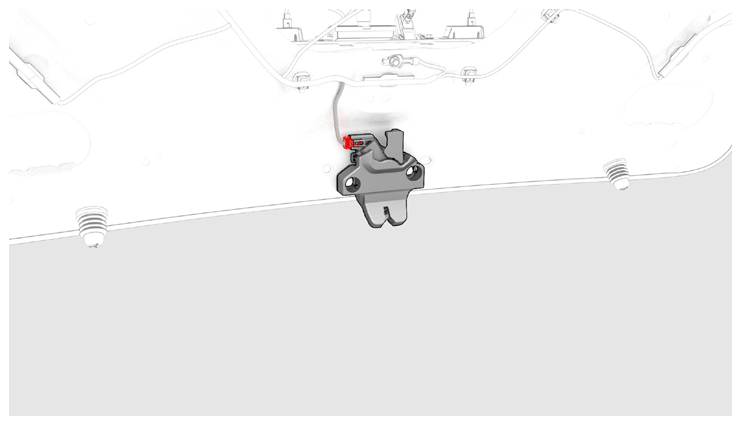

  6. Disconnect the trunk latch electrical connector.
    G14739098Courtesy of TESLA, INC.

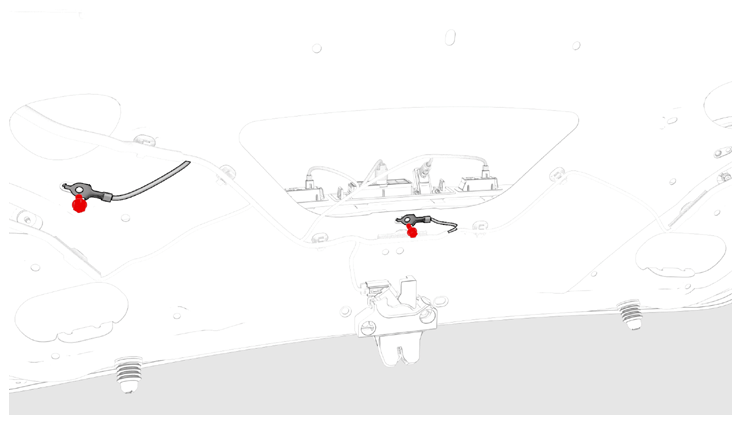

  7. Remove and discard the bolts (x2) that attach the trunk harness ground straps to the trunk lid.
    G14739099Courtesy of TESLA, INC.

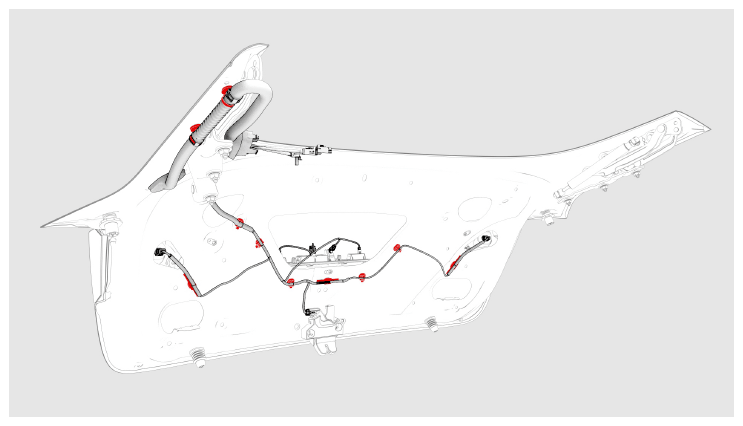

  8. Release the clips that attach the trunk harness to the trunk lid.
    G14739100Courtesy of TESLA, INC.

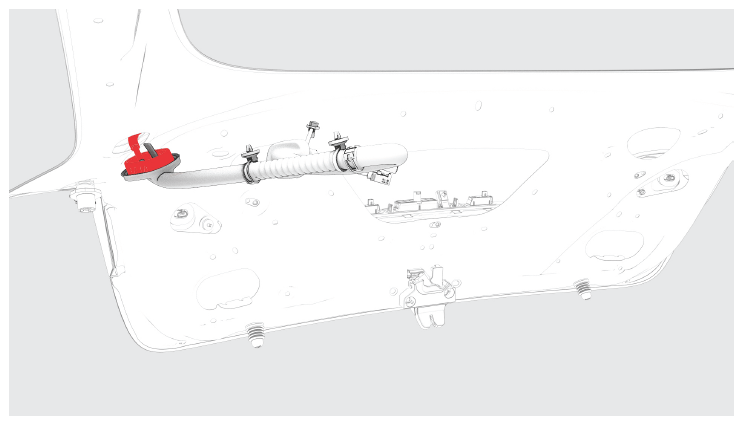

  9. Push the trunk harness through the trunk bulkhead and out of the trunk lid.
    G14739101Courtesy of TESLA, INC.
  10. Use a dry erase marker to mark the position of the trunk hinges on the trunk lid.

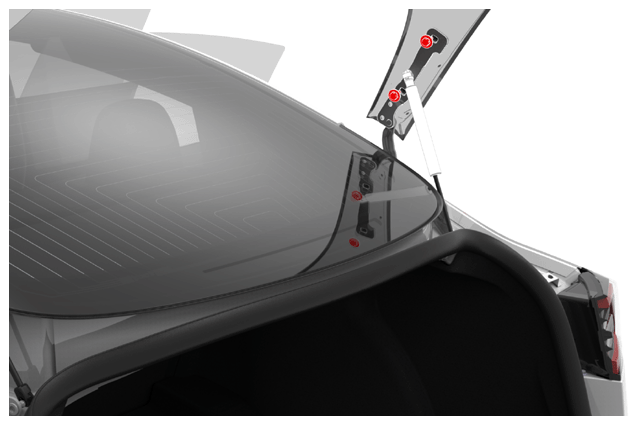

  11. Remove the bolts that attach the hinges to the trunk lid.
    NOTE: RH shown, LH similar.
    G14739102Courtesy of TESLA, INC.

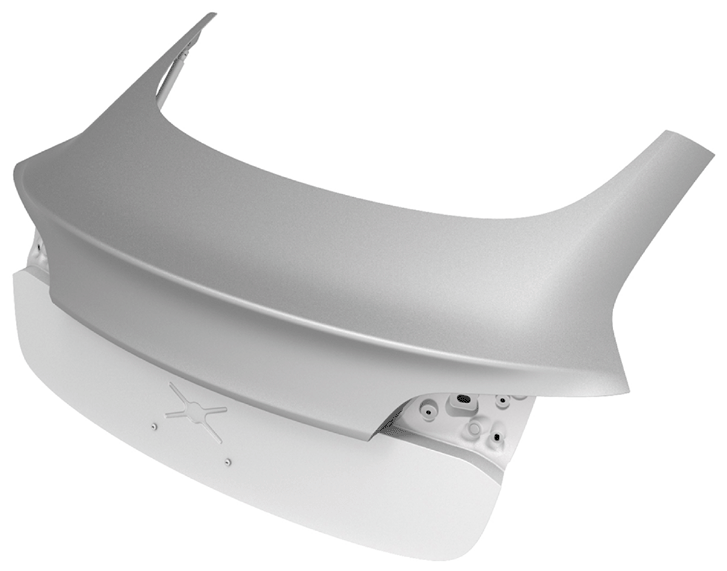

  12. With an assistant, remove the lid from the vehicle, and then place it on a padded surface.
    G14739103Courtesy of TESLA, INC.
