Overhead Console - Front - Remove and Replace: Remove

  1. Release the clips (x2) that attach the front overhead console to the headliner, and then lower the console from the headliner.
    G14741073Courtesy of TESLA, INC.
    CAUTION: To avoid damaging the headliner, do not pry against the headliner. Insert a 90 degree trim tool near the dome light and pull downwards to release the clip, and then move to the other side to release the remaining clip.

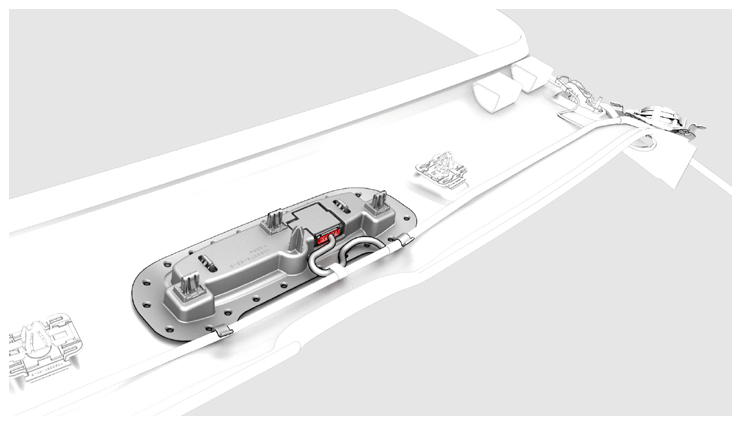

  2. Disconnect the electrical connector from the front overhead console.
    G14741074Courtesy of TESLA, INC.

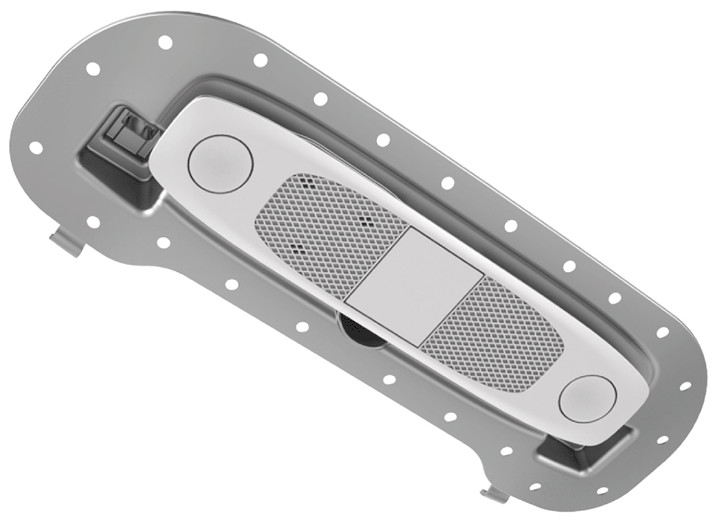

  3. Remove the front overhead console from the headliner.
    G14741075Courtesy of TESLA, INC.
