Steering Wheel - Remove and Install: Remove

  1. Set the vehicle's front wheels straight and the steering wheel centered.
  2. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  3. Open the hood.
  4. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  5. Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  6. Remove the driver airbag. See AIRBAG - DRIVER (REMOVE AND REPLACE) .
  7. Disconnect the steering wheel electrical wiring harness connector.

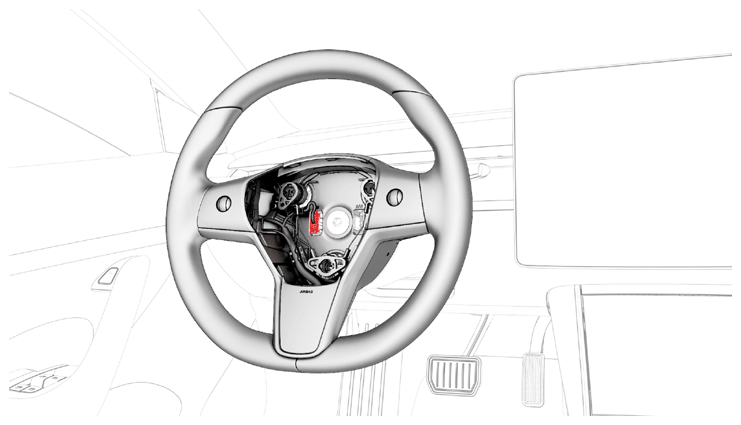

    G14749478Courtesy of TESLA, INC.
  8. Remove and discard the bolt that attaches the steering wheel to the steering column.

    80 N.m (59.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm hex
    • 3/8 in std ratchet
    • 3/8 in flex head torque wrench (installation only)
    • 3 in extension

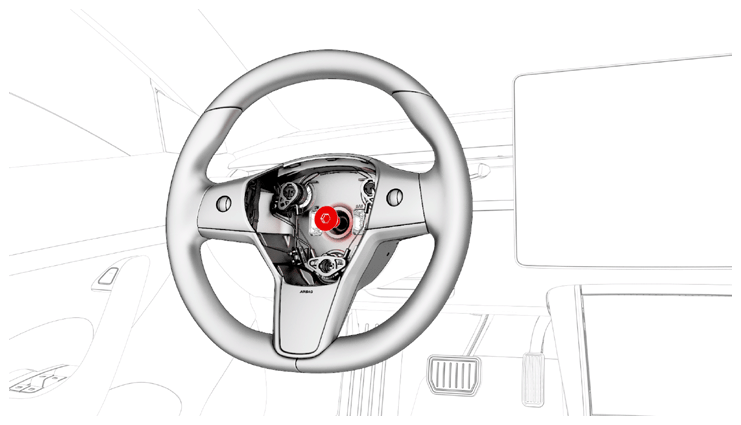

    G14749479Courtesy of TESLA, INC.
  9. Remove the steering wheel from the steering column.
