Steering Controller - Remove and Replace: Install

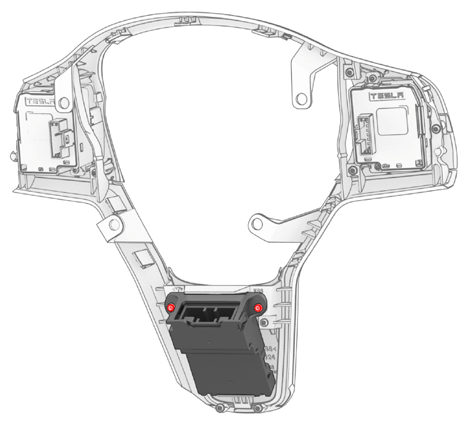

- Install the steering wheel controls ECU into the bright surround, and then install the screws (x2) that attach the ECU to the surround.
0.9 N.m (8 in-lbs)
Tip: Use of the following tool(s) is recommended:
- T10 Torx bit

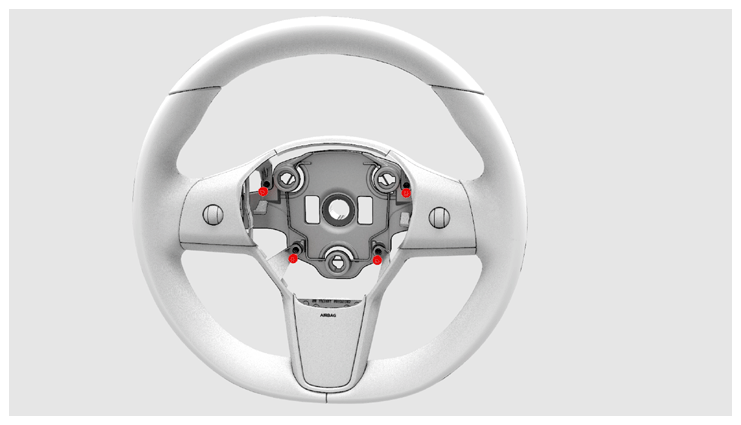

- Install the bright surround into the steering wheel, and then install the screws (x4) that attach the surround to the steering wheel.
Tip: Use of the following tool(s) is recommended:
- T20 socket

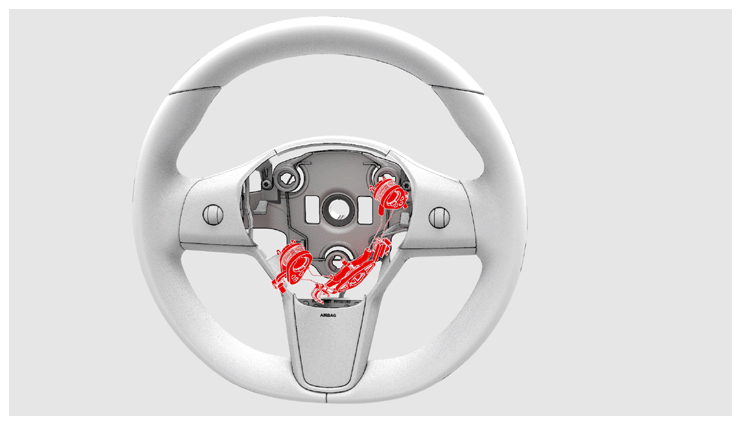

- Install the electrical harness into the steering wheel, and then connect the electrical harness to the steering wheel controls ECU connector.
- Move the horn assembly to the center, and then fasten the clips that attach the horn assembly.

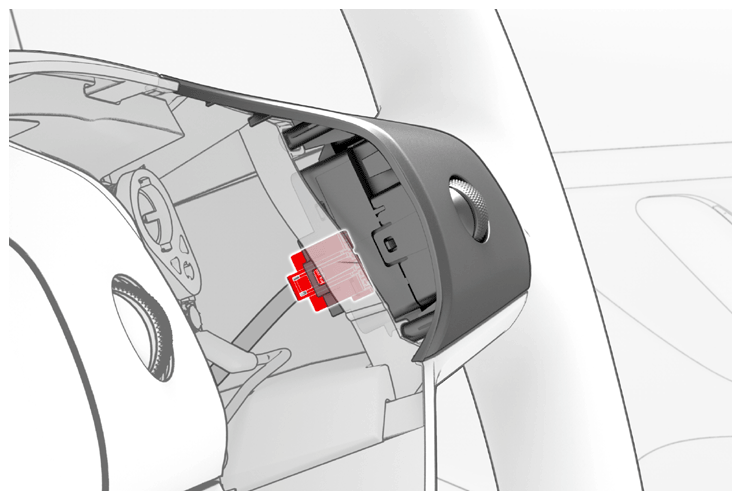

- Connect the electrical harness to the RH steering wheel switch connector.

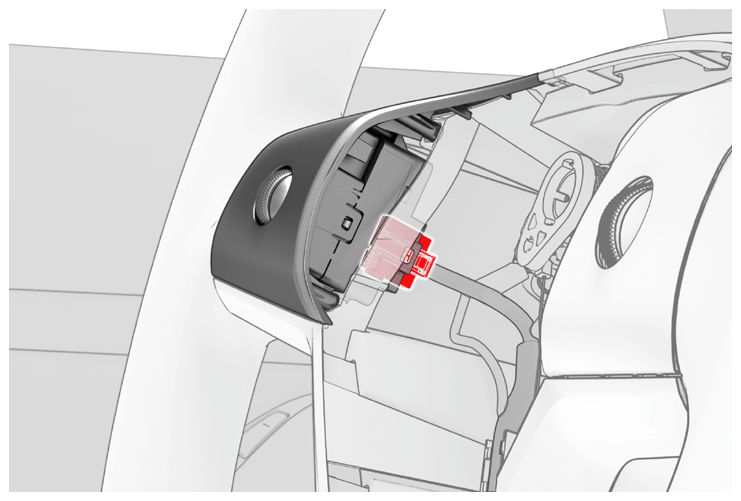

- Connect the electrical harness to the LH steering wheel switch connector.

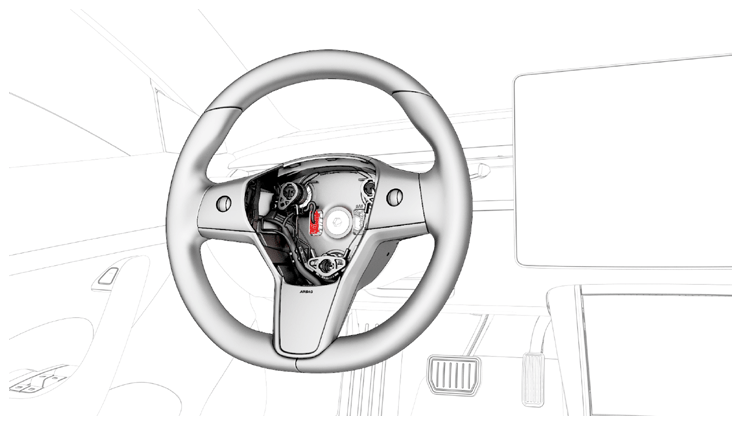

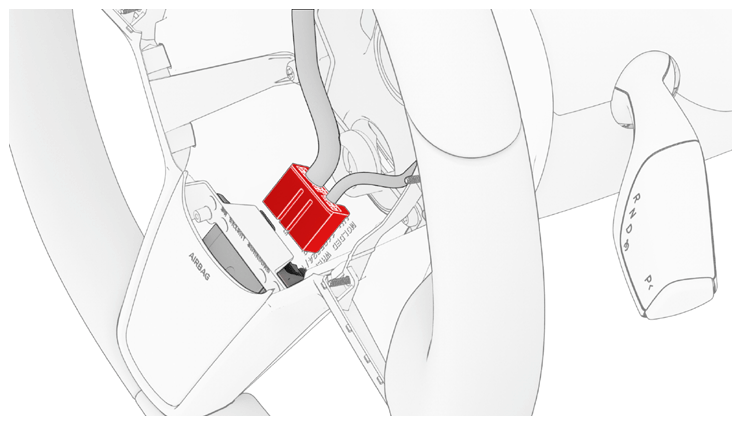

- Connect the steering wheel electrical harness to the connector.
- Install the driver airbag. See AIRBAG - DRIVER (REMOVE AND REPLACE) .
- Connect 12v power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
- Reinstall the vehicle firmware. See SOFTWARE REINSTALL - TOUCHSCREEN .
- In Toolbox, click Actions, type "SCCM" in the search field, click Play next to "PING-TP_SCCM", and then select Run .
- Click Actions, type "VCLEFT" in the search field, click Play next to "TEST-SELF_ VCLEFT_X_SWC", and then select Run .
- Click Actions, type "TEST-PYRO" in the search field, click Play next to "TEST-PYRO_RCM_X_DAB-STAGE-1", and then select Run .
- Click Actions, type "TEST-PYRO" in the search field, click Play next to "TEST-PYRO_RCM_X_DAB-STAGE-2", and then select Run .
- Disconnect the laptop from the vehicle.
- Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
- Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
