Module - Body Controller - RH (LHD) (Heat Pump) - Remove and Replace: Install

  1. Maneuver RH body controller module into position under the IP carrier, align the W clip with the body cut out, and then slide down the RH body controller module to secure it.
    G00621773Courtesy of TESLA, INC.
    G00621774Courtesy of TESLA, INC.
  2. Install a new nyloc nut that attaches the RH body controller module to the vehicle (torque 6 Nm).
    NOTE: Use of the following tool(s) is recommended:
    G00621775Courtesy of TESLA, INC.

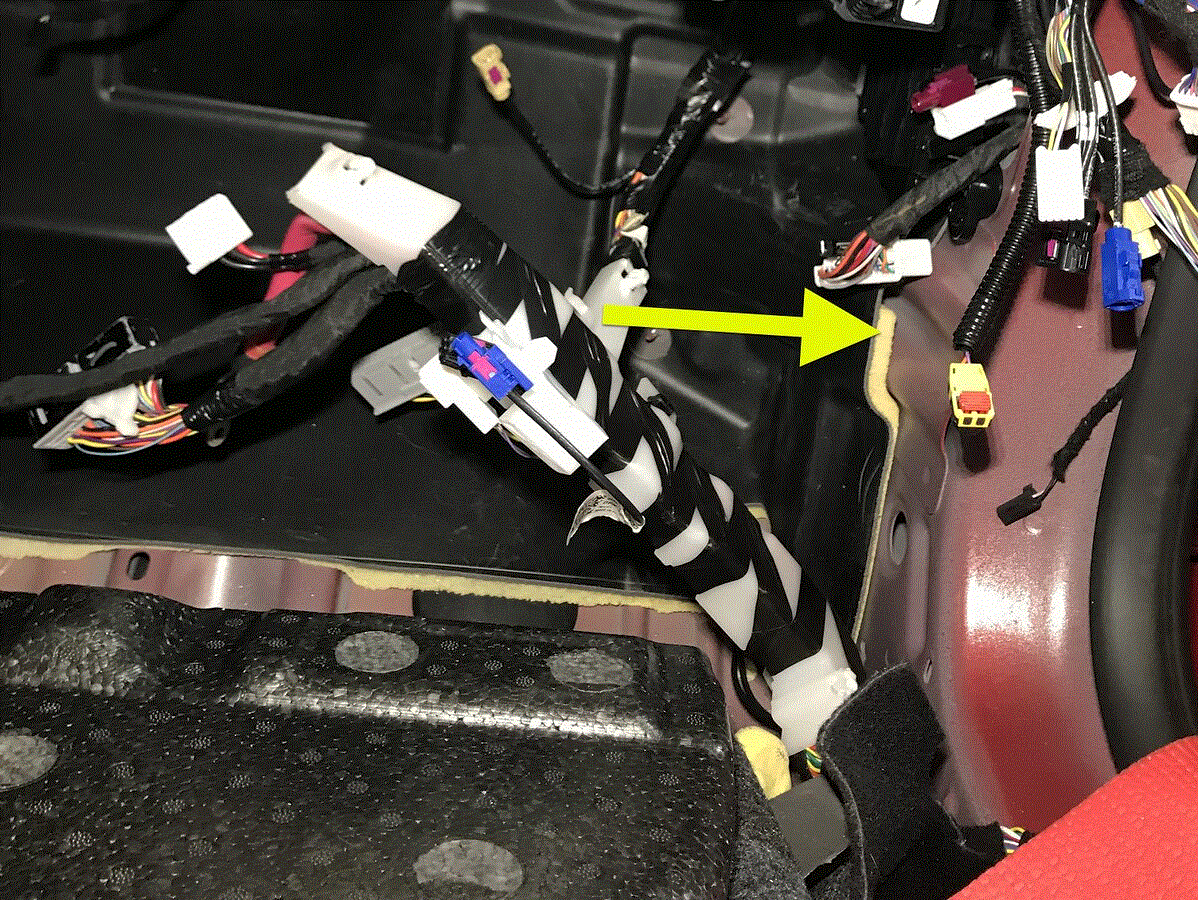

  3. Move the RH body harness towards the RH body controller module.
    G00621776Courtesy of TESLA, INC.
  4. Install the RH body harness clips to the RH body controller module.
    G00621770Courtesy of TESLA, INC.
    G00621771Courtesy of TESLA, INC.
    G00621772Courtesy of TESLA, INC.
  5. Install the RH body harness clip to the RH lower A-pillar area.
    G00621769Courtesy of TESLA, INC.
  6. Connect the connectors at the harness clip at the RH lower A-pillar area.
    G00621768Courtesy of TESLA, INC.
  7. Connect the J5 body electrical connector to the RH body controller module.
    G14743999Courtesy of TESLA, INC.
  8. Connect the J12 body electrical connector to the RH body controller module.
    G14744000Courtesy of TESLA, INC.
  9. Connect the J2 body electrical connector to the RH body controller module: fully seat the connector, and then engage the lock.
    G14744002Courtesy of TESLA, INC.
  10. Connect the J6 underhood storage unit electrical connector to the RH body controller module.
    G00651827Courtesy of TESLA, INC.
  11. Connect the J1 power electrical connector to the RH body controller module.
    G14743975Courtesy of TESLA, INC.
  12. Connect the J4 body electrical connector to the RH body controller module.
    G14743974Courtesy of TESLA, INC.
  13. Connect the connector of the RH body harness.
    G00621765Courtesy of TESLA, INC.
  14. Connect the J11 HVAC electrical connector to the RH body controller module.
    G14743980Courtesy of TESLA, INC.
  15. Connect the J10 instrument panel electrical connector to the RH body controller module.
    G14743979Courtesy of TESLA, INC.
  16. Connect the J9 front passenger seat electrical connector to the RH body controller module.
    G14743978Courtesy of TESLA, INC.
  17. Connect the J7 door electrical connector to the RH body controller module.
    G14743977Courtesy of TESLA, INC.
  18. Install the harness clips below the IP carrier.
    G00621766Courtesy of TESLA, INC.
    G00621767Courtesy of TESLA, INC.
  19. Install the nuts (x2) that attach the RH side carpet locator bracket (torque 2.5 Nm).
    NOTE: Later vehicles may use push clips instead of nuts.
    G00651868Courtesy of TESLA, INC.
  20. Unfold the RH front carpet, and then reinstall the harness into the clips at the RH door sill.
  21. Install the clips (x3) that attach the RH front carpet to the body.
  22. Install the RH center console side panel carpet. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
  23. Install the RH front floor mat.
  24. Install the glove box. See GLOVE BOX - WITH KNEE AIRBAGS (NON-HEAT PUMP) (REMOVE AND REPLACE) or GLOVE BOX - WITHOUT KNEE AIRBAGS - REMOVE AND REPLACE .
  25. Install the front passenger knee airbag (if equipped). See AIRBAG - KNEE - FRONT PASSENGER (REMOVE AND REPLACE) .
  26. Install the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .
  27. Install the RH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  28. Install the RH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  29. Install the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
  30. Install the RH air wave end cap. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
  31. Install the RH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  32. Repeat steps  30 and  31 for the LH side of the vehicle.
  33. Connect 12V/LV power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  34. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  35. Connect to the vehicle using Toolbox 3.0.
  36. In Toolbox, click the Actions  tab, and then type "Service_Redeploy" in the search field.
  37. Click UPDATE_SERVICE_REDEPLOY, click Run  , and allow the routine to complete.
  38. Once firmware redeploy is complete, verify on the center display that the release notes are present.
  39. Sit in the driver seat and close the LH front door.
  40. In Toolbox, click the Actions  tab, and then type "PROC_VCRIGHT" in the search field.
  41. Click PROC_VCRIGHT_X-POST-REPLACEMENT-PROCEDURE, and then click Run  and allow the routine to complete.
    NOTE: Keep the front passenger seat clear of any objects during calibration.
  42. Disconnect the laptop from the vehicle.
  43. Close the front doors and raise the windows.
