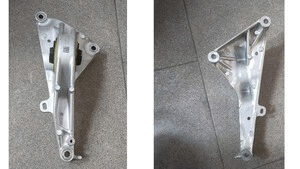

Mount - Front Drive Unit - LH - Remove And Replace: Remove

Remove the front subframe assembly. See Subframe Assembly - Front (Dual Motor) - Remove And Install .

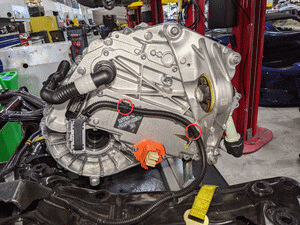

Remove the clips (x2) that attach the front drive unit harness to the front drive unit inverter.

Courtesy of TESLA, INC.

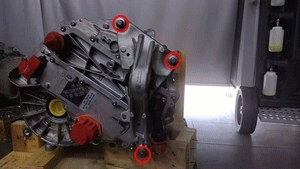

Remove the bolts (x3) that attach the front drive unit LH mount to the front drive unit.
35 N.m (25.8 lbs-ft) + 55 degrees

Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- External Torx E14
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
