Wiper Module - Remove And Replace: Remove

  1. Remove the cowl screen panel. See PANEL - COWL SCREEN (REMOVE AND REPLACE) .

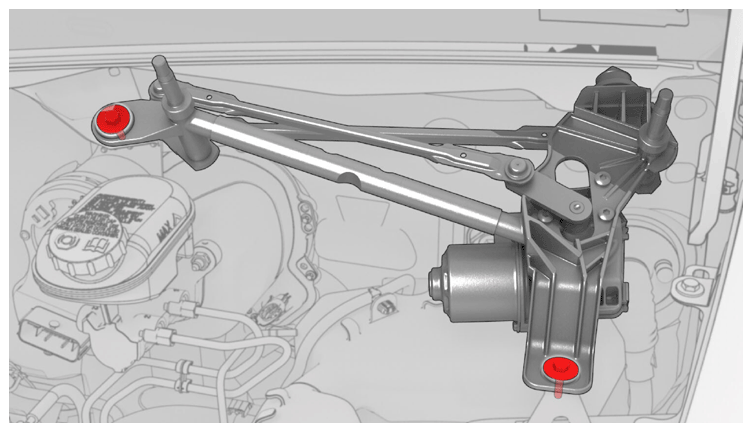

  2. Remove the bolts that attach the wiper module to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    • 2 in extension
    G14834050Courtesy of TESLA, INC.

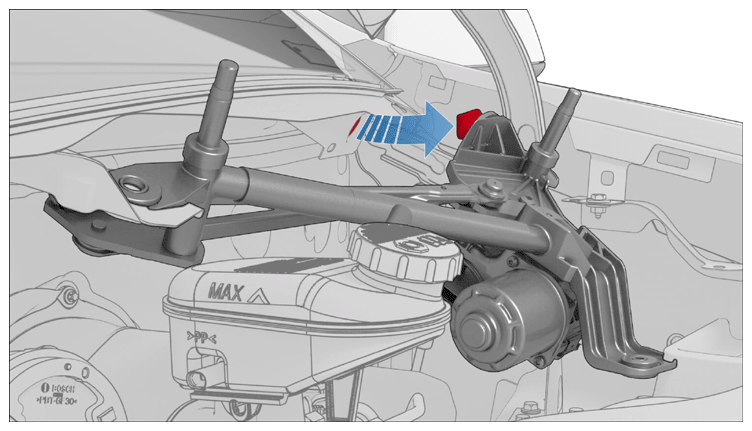

  3. Carefully pull the wiper module towards the front of the vehicle to release the rubber anchor from the bracket on the bulkhead.
    G14834051Courtesy of TESLA, INC.

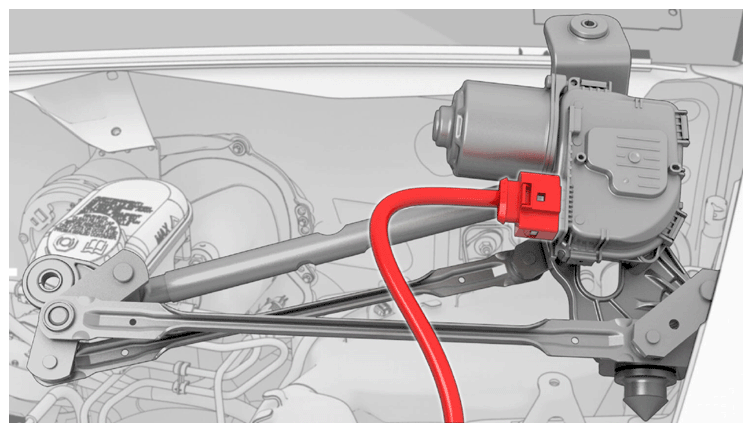

  4. Rotate the wiper module, and then disconnect the electrical connector from the wiper module.
    G14834052Courtesy of TESLA, INC.
  5. Remove the wiper module from the vehicle.
