Module - Thermal Controller - Remove And Replace: Remove

  1. Remove the ECU box from the vehicle ECU Box (Remove And Install) .

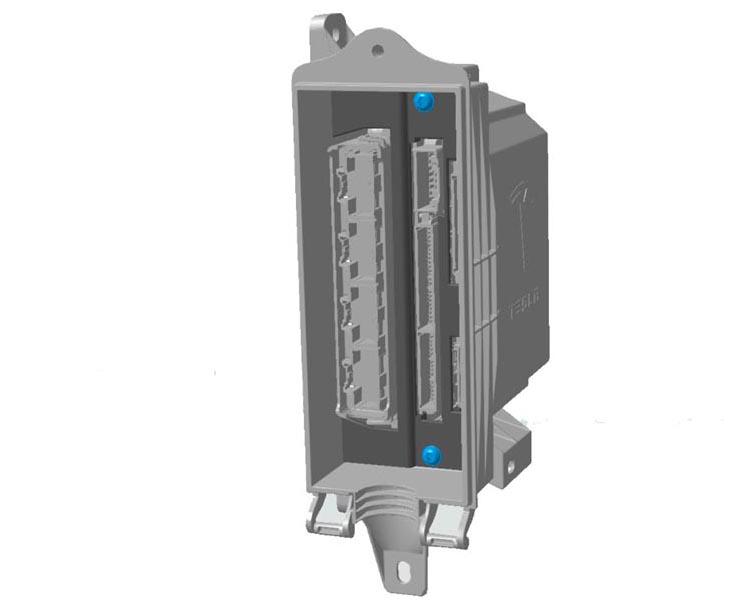

  2. Remove the screws (x2) that secure the bracket inside the ECU box (torque 2.5 N.m).
    G15204298Courtesy of TESLA, INC.

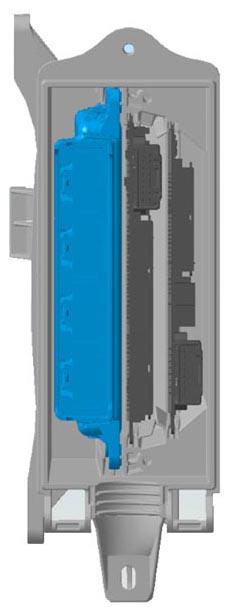

  3. Remove the thermal controller module from the ECU box.
    G15204299Courtesy of TESLA, INC.
