Puddle Light - Liftgate - Remove & Replace: Installation

  1. Connect the electrical harness to the puddle light.

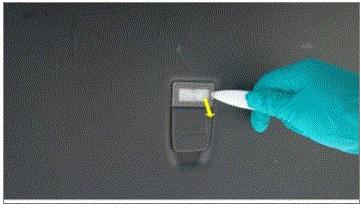

  2. Install the puddle light to the middle liftgate trim.
    G00644102Courtesy of TESLA, INC.
  3. Close the liftgate.
