Target Calibration

  1. Using Toolbox 3:
    1. Select the Actions  tab and search for "SPTAC".
    2. Select the ODIN routine PROC_DAS_X_SPTAC  , and then click the link of the routine.
    3. Click RUN  and follow the onscreen instructions to calibrate the forward facing camera.
  2. When prompted, move the target from "Location 1" to "Location 2".

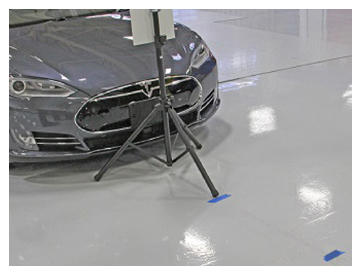

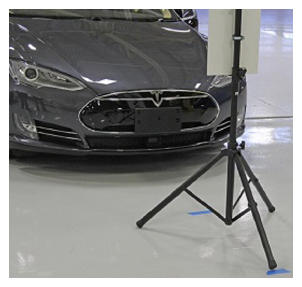

    Location 1 Location 2
    G15203068Courtesy of TESLA, INC.
    G15203069Courtesy of TESLA, INC.
  3. Once the calibration procedure is completed, click X  to close the pop-up.
