Steering Rack (RHD) (2nd Generation) - Remove And Replace: Removal

  1. Remove the front subframe. See SUBFRAME ASSEMBLY - FRONT - 1ST GENERATION (REMOVE AND INSTALL)
  2. Remove the LH and RH tie rod ends. See TIE ROD END - LH (REMOVE AND REPLACE)
  3. Remove and discard the fasteners that attach the steering rack to the subframe (torque 175 N.m).

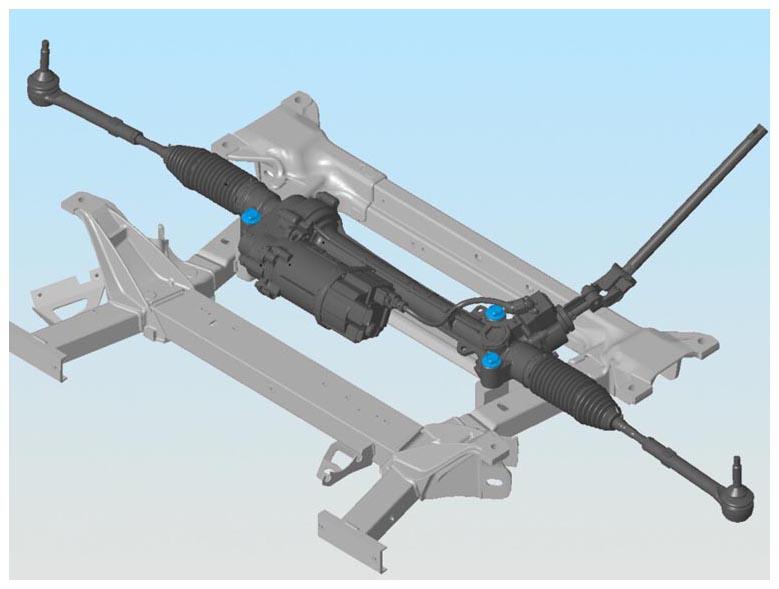

    LHD version shown. RHD is a mirror image of this figure.

    G15207039Courtesy of TESLA, INC.
  4. Remove the steering rack from the front subframe.
