Wheel - Remove And Install: Remove

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the vehicle to a 2 post lift. See Raise Vehicle - 2 Post Lift .
    NOTE: If using a floor jack, position the floor jack under the lift point at the wheel to be removed.
  2. On the vehicle touchscreen, touch Controls > Service > Suspension > Jack Mode  to enable Jack Mode.

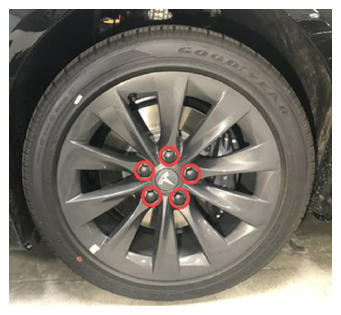

  3. Remove the lug nut covers (x5) from the wheel.
    G15106244Courtesy of TESLA, INC.

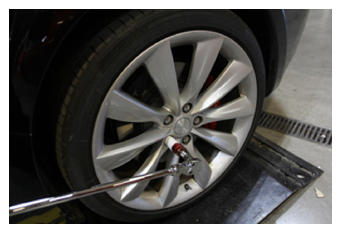

  4. Loosen, but do not remove the lug nuts (x5) that attach wheel to the hub.
    G15106245Courtesy of TESLA, INC.
  5. Raise vehicle to unload the suspension.
    NOTE: If using a floor jack, raise the vehicle to unload the suspension at the wheel to be removed.

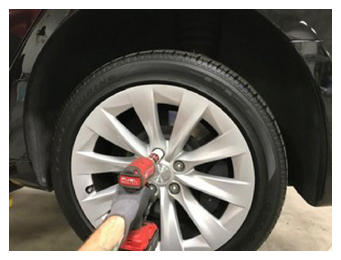

  6. Remove the lug nuts (x5) from the wheel, and then remove the wheel from the hub.
    G15106246Courtesy of TESLA, INC.
