Panel - Service - Center Console - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.

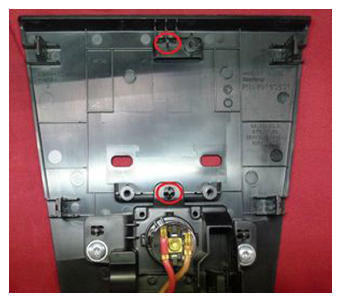

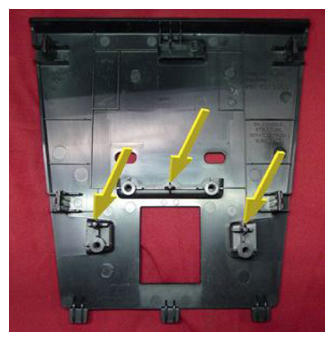

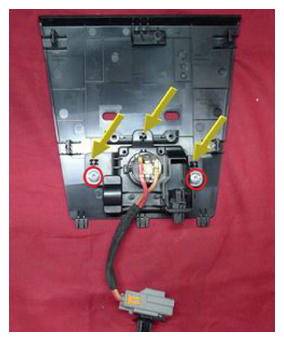

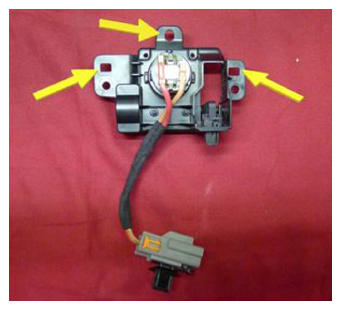

Position the 12V power outlet onto the center console service panel, and then install the screws (x2) that attach the outlet to the service panel.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

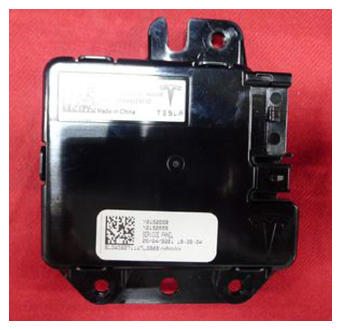

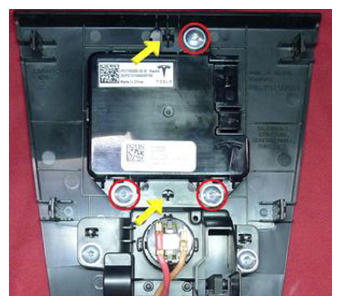

Install the screws (x3) that attach the front USB hub to the center console service panel.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

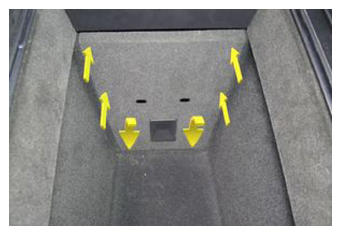

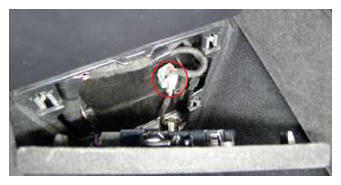

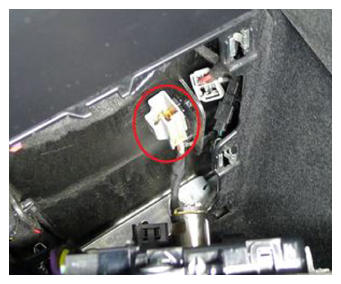

Position the center console service panel on the center console, then secure the electrical harness clip, and then connect the service panel electrical connectors (x3).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

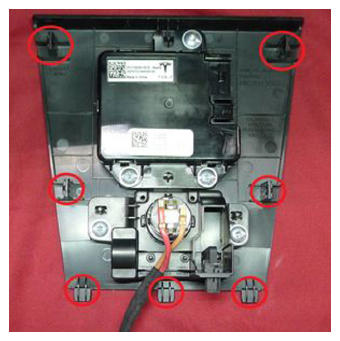

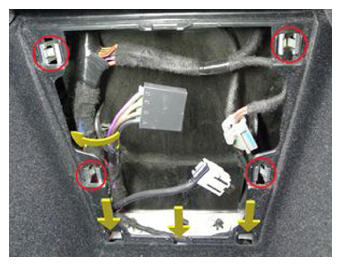

Fasten the clips (x4) that attach the center console service panel to the center console.

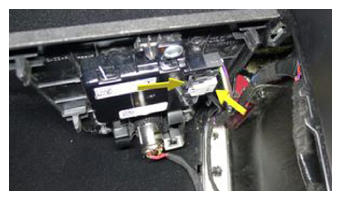

NOTE: Ensure connector X1131 and X881 are positioned to the right of the main harness for USB hub clearance.

NOTE: Engage the datums at the bottom of service panel, and then secure the clips.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

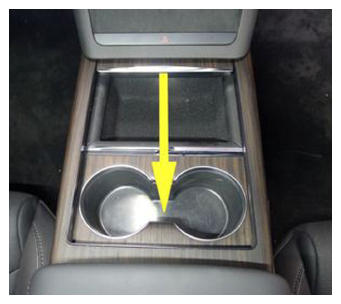

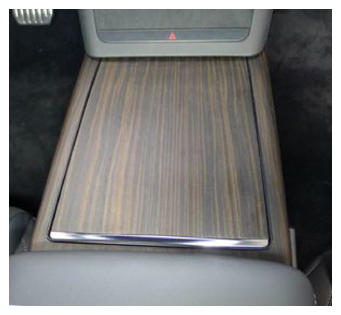

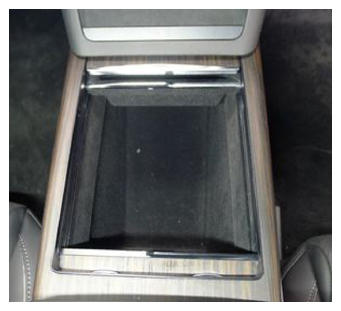

Close the center console.

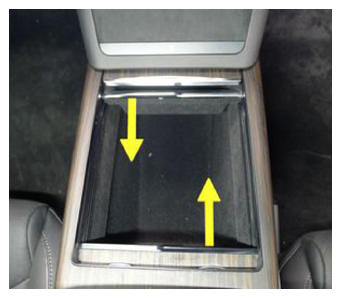

NOTE: Fully engage center console lid, cup holder, and sliding tray into the closed position.
