Puddle Light - Front Door - LH - Remove and Replace: Remove

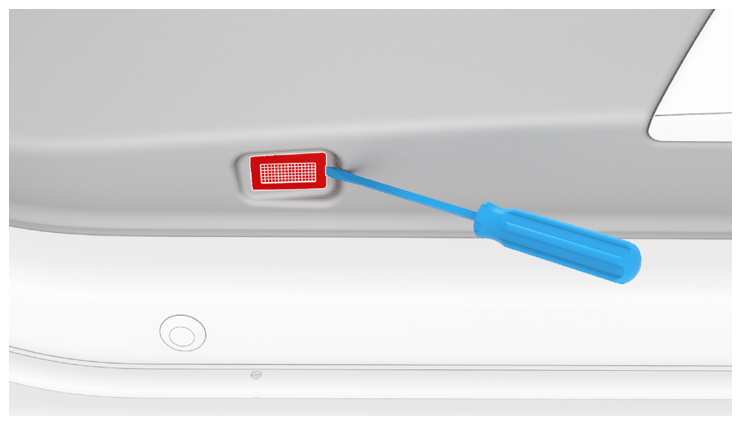

  1. Use a small screwdriver or pry tool in the slot at the front of the puddle light to pry the light out of the bottom of the front LH door trim panel.
    G14744192Courtesy of TESLA, INC.
  2. Release the clips that attach the front of the puddle light to the bottom of the door trim panel, and then separate the light from the panel.
    CAUTION: Do not pull the puddle light too far from the door panel, as the puddle light connector is still attached.
    G14744193Courtesy of TESLA, INC.
  3. Disconnect the electrical wiring harness from the puddle light connector, and then remove the light from the vehicle.
    G14744194Courtesy of TESLA, INC.
