Buckle - 1st Row - LH - Remove and Replace: Remove
- Remove the inboard side shield. See SIDE SHIELD - INBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
- Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .

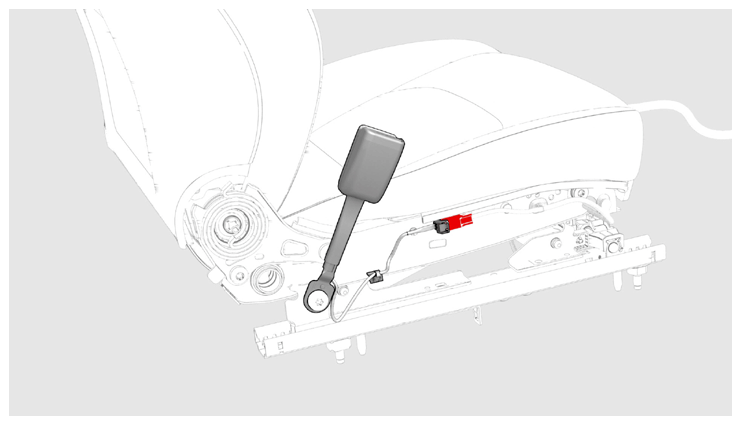

- Disconnect the electrical connector from the LH 1st row buckle.
- Release the harness clip from the seat bottom frame.
- Remove and discard the patchbolt that attaches the buckle to the seat track, and then remove the buckle.
Tip: Use of the following tool(s) is recommended:
- Torx Plus T45 socket
- 3/8 in std ratchet
- 3/8 in torque wrench (installation only)
- 3 in extension
