Steering Column - Remove And Replace: Removal

  1. Remove the steering column control module MODULE - STEERING COLUMN CONTROL (REMOVE AND REPLACE) .

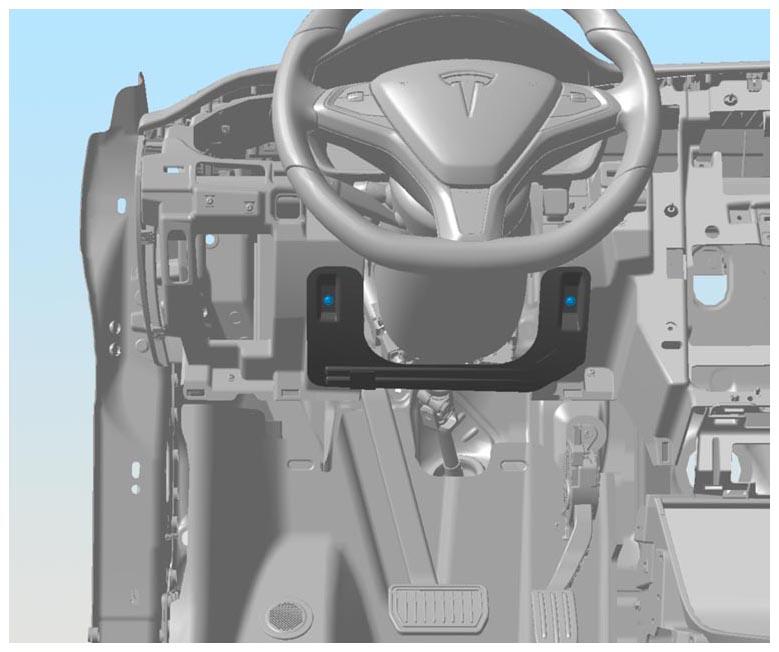

  2. Remove the screws (x2) that secure the driver's knee bolster (torque 2.3 N.m). Remove the bolster from the vehicle.
    G15207049Courtesy of TESLA, INC.
  3. Remove the LH center console closeout extension Closeout Extension - Center Console - LH (Remove And Replace) .
  4. Remove the LH footwell assembly cover Assembly - Cover - Footwell - Driver's (Remove And Replace) .
  5. Remove the driver's knee air bag Knee Air Bag - Driver's (Remove And Replace) .
  6. Mark the upper intermediate shaft position relative to the column.

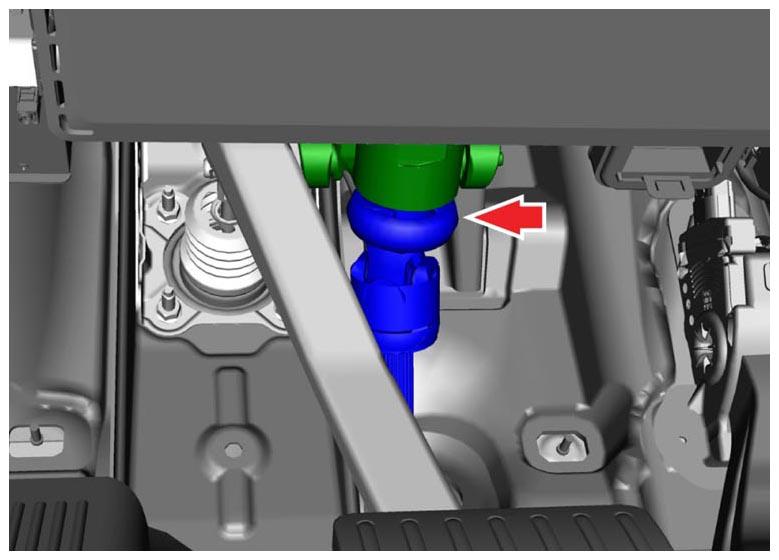

  7. Remove the bolt that secures the upper intermediate shaft to the steering column (torque 30 N.m).
    G15207050Courtesy of TESLA, INC.

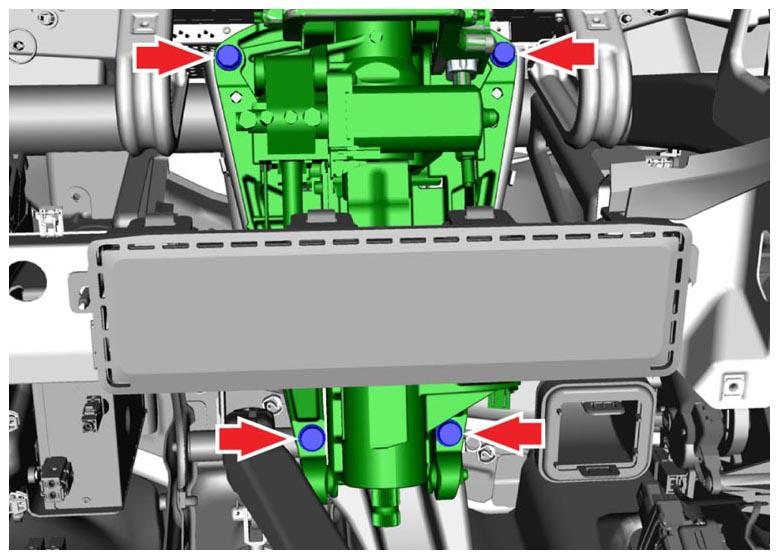

  8. Remove the fasteners that secure the steering column to the mounting bracket (upper nuts 30 N.m, lower bolts 17 N.m).
    G15207051Courtesy of TESLA, INC.

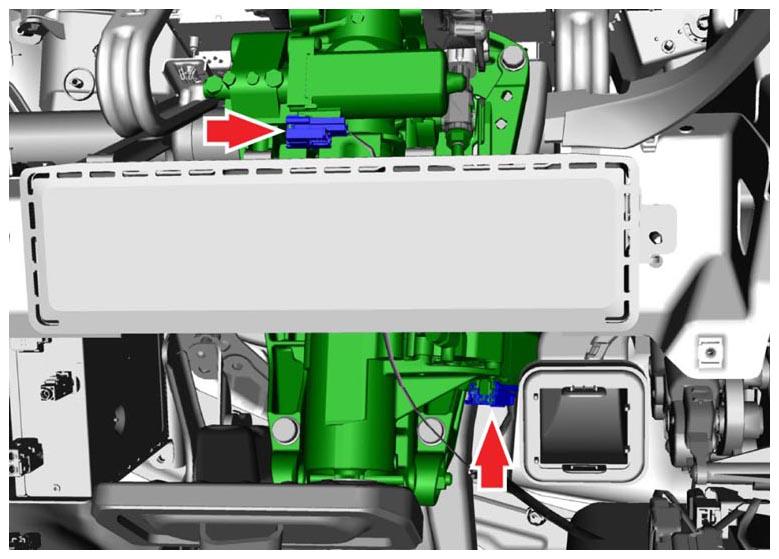

  9. Disconnect the steering column motor harness connectors (x2).
    CAUTION: Take care not to damage component(s).
    G15207052Courtesy of TESLA, INC.
  10. Release the steering column from the upper intermediate shaft and remove the steering column from the vehicle.
