Steering Rack (RHD) (3rd Generation) - Remove And Replace: Removal

  1. Remove the 2nd generation front subframe assembly (RHD) from the vehicle. See SUBFRAME ASSEMBLY - FRONT - 2ND GENERATION (RHD) (REMOVE AND INSTALL)
  2. Remove and retain the front stabilizer bar assembly from the subframe.

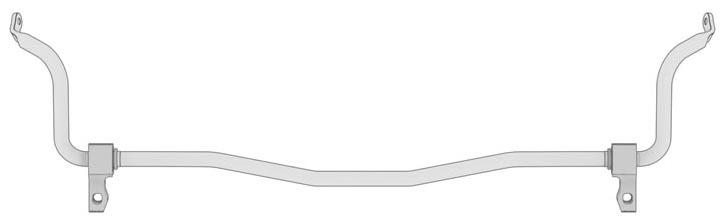

    G15207040Courtesy of TESLA, INC.
  3. Remove the bolts (x3) that attach the steering rack to the front subframe assembly, and then remove the steering rack from the subframe.

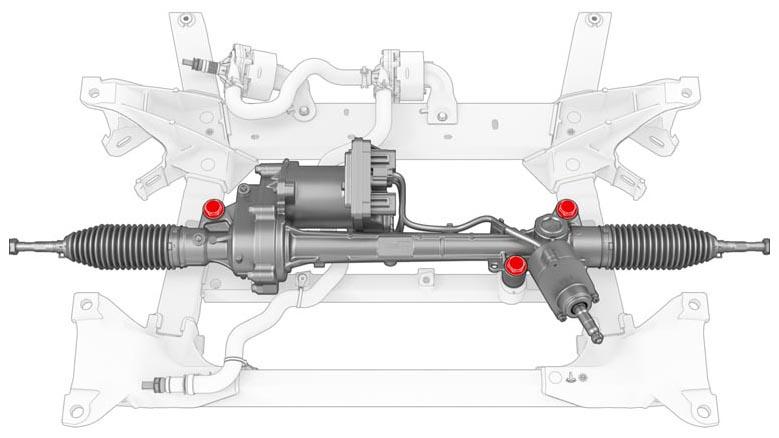

    G15207041Courtesy of TESLA, INC.
