Steering Rack (RHD) (3rd Generation) - Remove And Replace: Installation

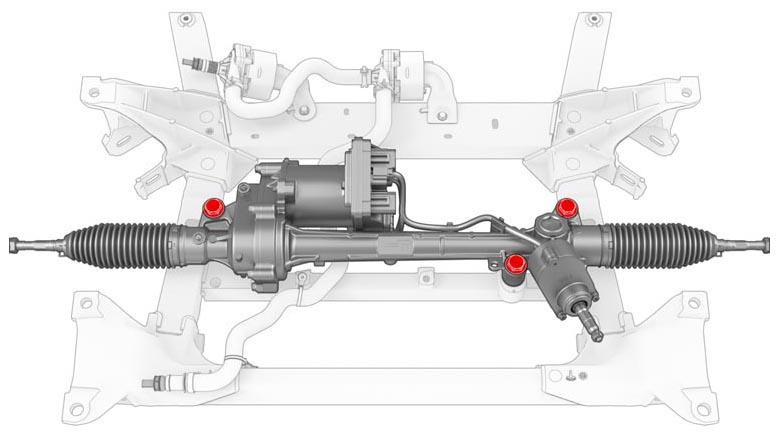

- Install the bolts (x3) that attach the steering rack to the front subframe assembly (torque 175 N.m).
 Courtesy of TESLA, INC.
|

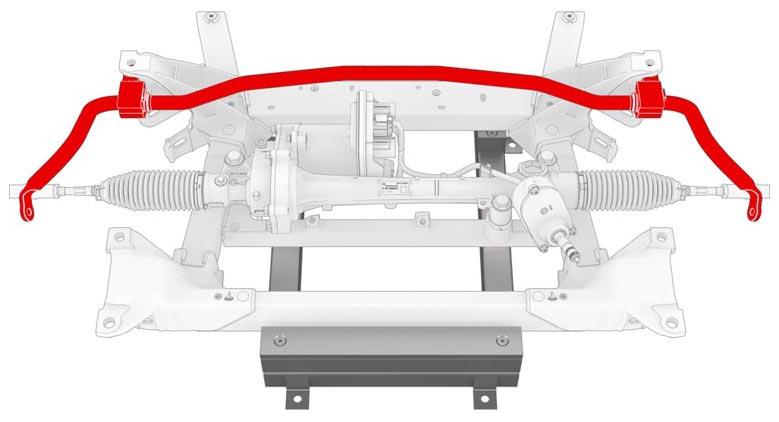

- Install the front stabilizer bar into position for installation on the front subframe assembly.
 Courtesy of TESLA, INC.
|
- Put the front subframe assembly with the powertrain table/subframe fixture under the vehicle for installation.
- Install the front subframe assembly onto the vehicle. See SUBFRAME ASSEMBLY - FRONT - 2ND GENERATION (RHD) (REMOVE AND INSTALL)
- Refer to the Alignment Requirement tables to determine if an alignment check (AC) or full adjustment (FA) is necessary. See ALIGNMENT REQUIREMENT - SUSPENSION
.
