Actuator - Pedestrian Protection - LH - Remove And Replace: Installation

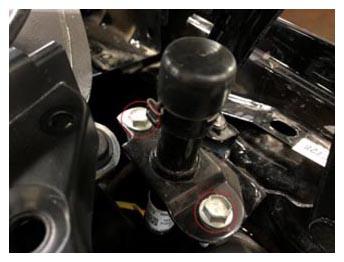

Install the bolts (x2) that attach the LH pedestrian protection actuator to the body (torque 8 N.m).

Courtesy of TESLA, INC.

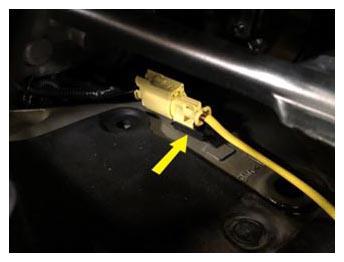

Secure the fir tree clip that attaches the LH pedestrian protection connector to the body.

Courtesy of TESLA, INC.

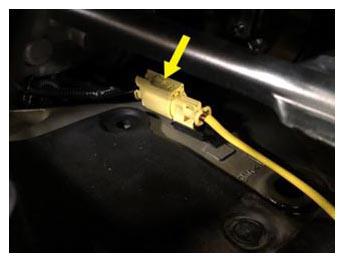

Connect the LH pedestrian protection actuator connector.

Courtesy of TESLA, INC.
Install the cowl screen panel. See PANEL - COWL SCREEN (REMOVE AND REPLACE) .
Install the LH and RH wiper arms. See WIPER ARM - LH (REMOVE AND REPLACE) .
Reconnect 12V power. See DISCONNECT 12V POWER .
Install the HEPA filter. See FILTER - HEPA (REMOVE AND REPLACE) .
Install the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
Install the LH and RH underhood aprons. See UNDERHOOD APRON - LH (REMOVE AND REPLACE) .
Install the rear center underhood apron. See UNDERHOOD APRON - CENTER - REAR (REMOVE AND REPLACE) .
Calibrate the rear doors using the touchscreen.
Turn on drive rails

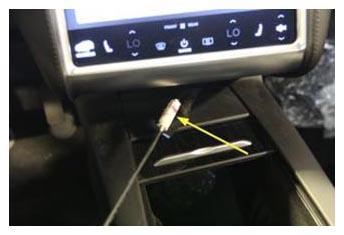

Connect a laptop with Toolbox 3 to the vehicle.
Unlock the gateway. See Gateway Unlock .
In Toolbox 3, click the Actions tab, type "Airbag-Config" into the search field, click PROC_RCM_X_AIRBAG-CONFIG , click Run , and allow the routine to complete.
In Toolbox 3, click the Actions tab, type "ESP-CONFIG" into the search field, click PROC_ESP_X_ESP-CONFIG , click Run , and allow the routine to complete.

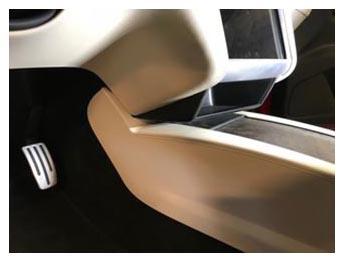

Disconnect the laptop from the vehicle and reinstall storage cubby.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Cycle the drive rails.
