Reservoir Assembly - Windshield Washer - Remove And Replace: Installation

  1. Install the windshield washer reservoir assembly into the vehicle by maneuvering it in through the wheel well.

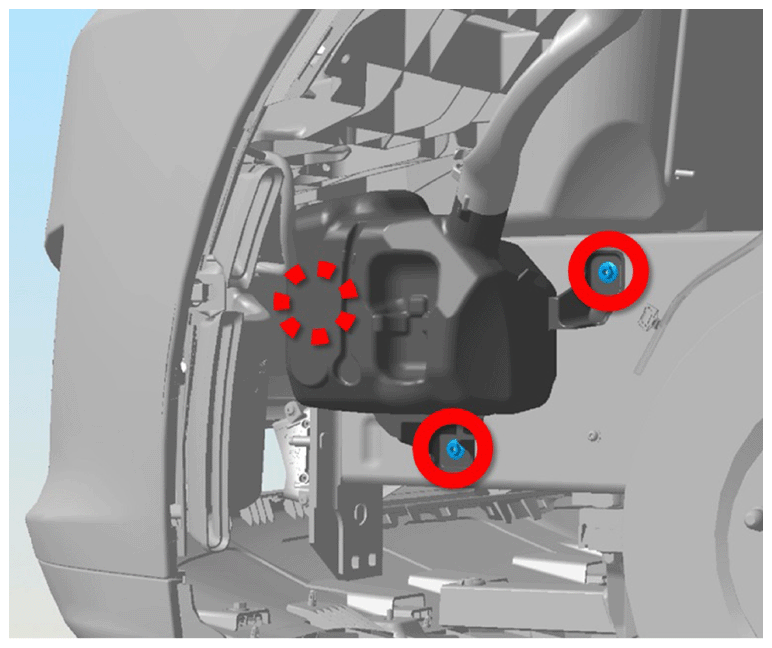

  2. Install the nuts (x3) that attach the windshield washer reservoir assembly to the body (torque 5 N.m).
    G15203340Courtesy of TESLA, INC.

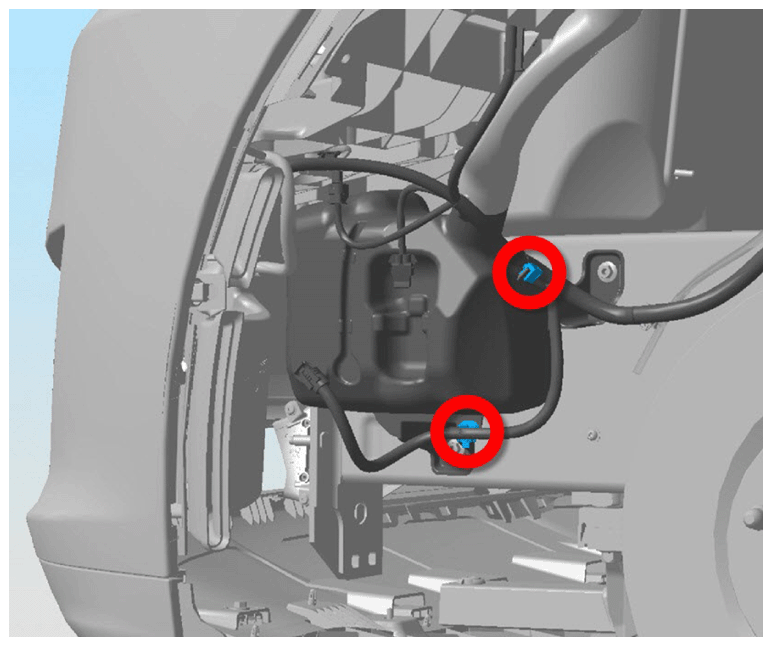

  3. Fasten the electrical harness clips to the windshield washer reservoir assembly.
    G15203341Courtesy of TESLA, INC.

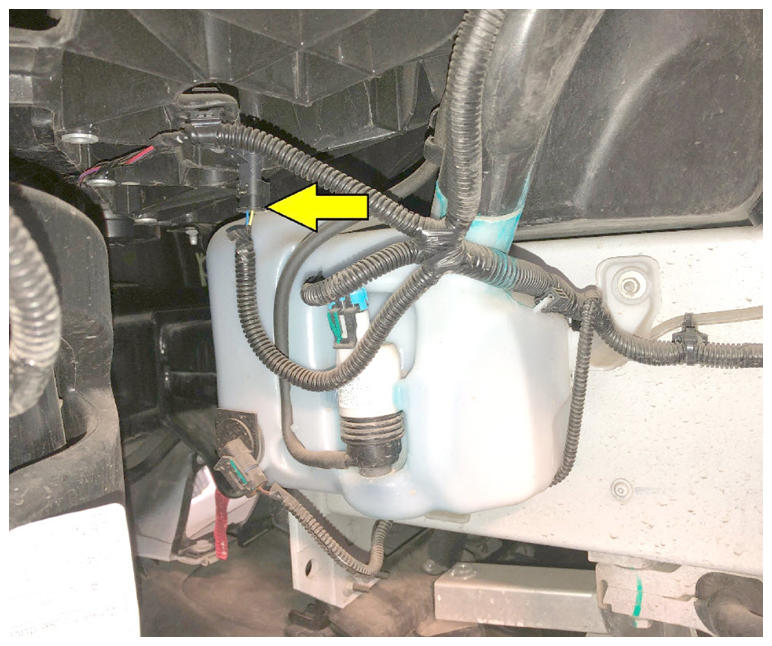

  4. Connect the electrical harness to the LH front accelerometer connector.
    G15203342Courtesy of TESLA, INC.

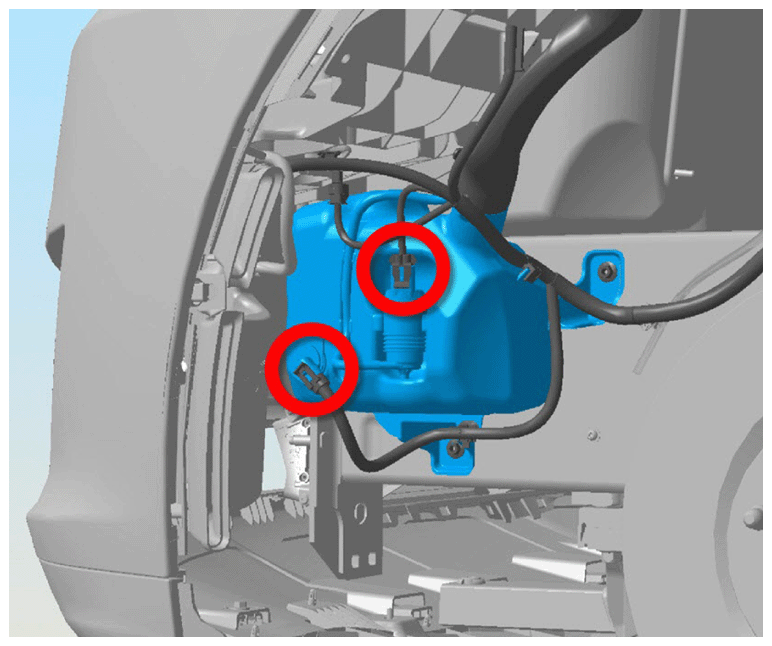

  5. Connect the electrical harness to the washer pump connector and the fluid level sensor connector.
    G15203343Courtesy of TESLA, INC.
  6. Install the LH front wheel arch liner Wheel Arch Liner - Front - LH (Remove And Replace) .

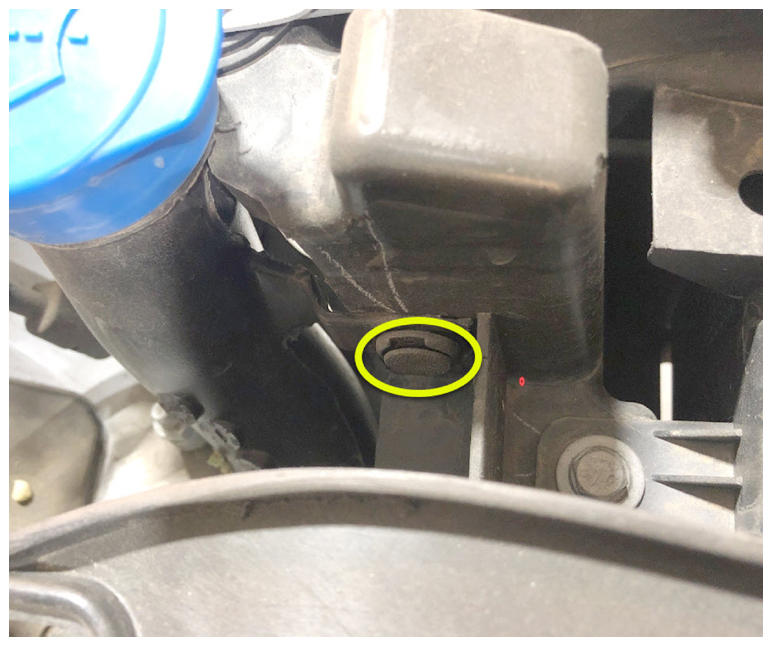

  7. Fasten the push clip that attaches the windshield washer reservoir filler neck to the front end carrier.
    G15203344Courtesy of TESLA, INC.

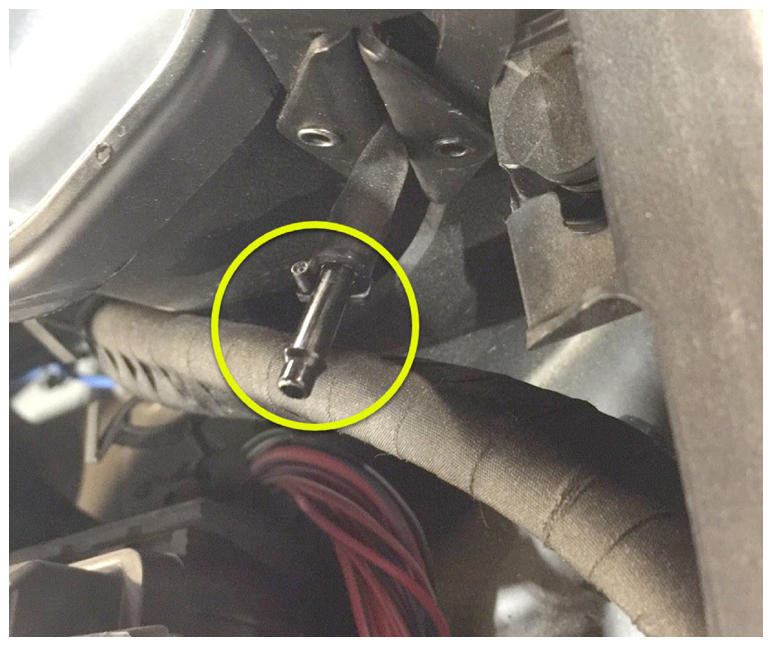

  8. Connect the windshield washer hose.
    NOTE: If the check valve was removed previously, install an inline coupler.
    G15203345Courtesy of TESLA, INC.
  9. Install the underhood storage unit Underhood Storage Unit (Remove And Replace) .
  10. Fill the windshield washer reservoir with washer fluid, and check the operation.
