Antenna - Passive Entry - Front - Remove And Replace: Installation

Installation procedure is the reverse of removal, except for the following:

1. Clean the mounting surface with alcohol wipes.
2. Apply double sided tape to the passive entry antenna, if necessary.
3. Loosely install the RH screw that secures the passive entry antenna.

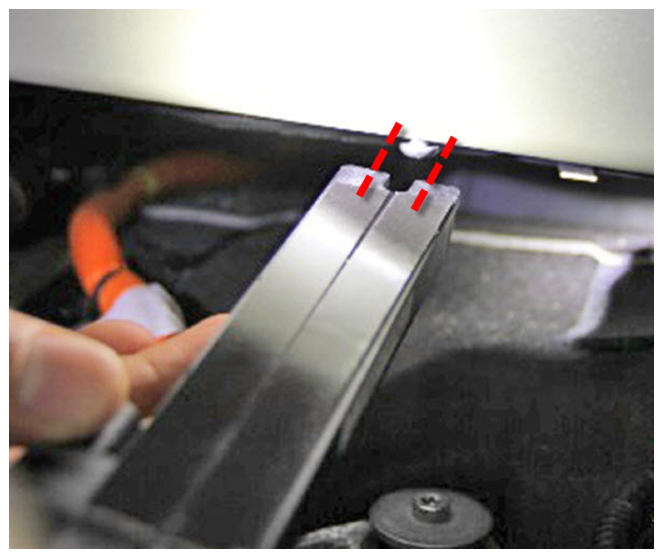

4. Place the passive entry antenna against the screw so that the notch is flush with the screw.

   Courtesy of TESLA, INC.

5. Pivot the passive entry antenna so that it is in the desired location.

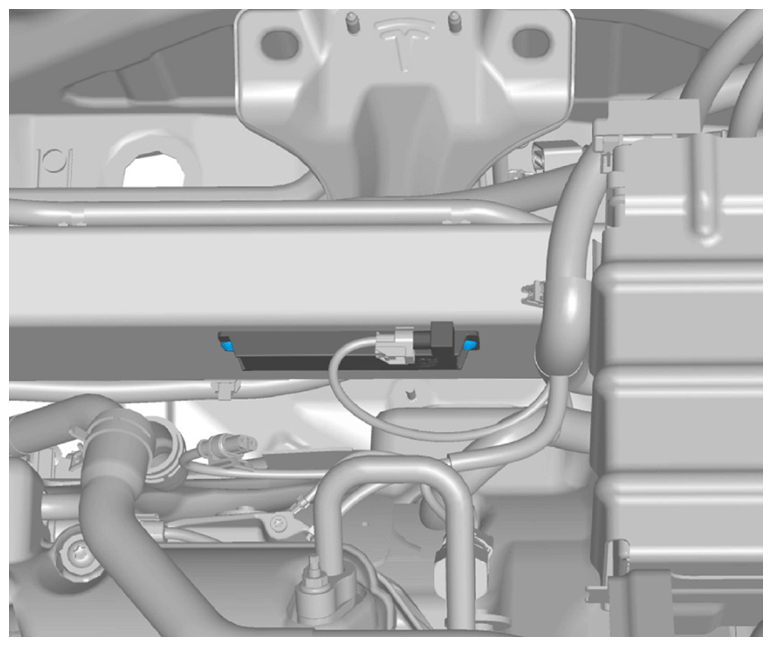

6. Fully install both screws that secure the passive entry antenna to the front crossmember (torque 3.5 N.m).
   NOTE: The following image shows the electrical connector already connected.

   Courtesy of TESLA, INC.

7. Apply firm pressure to the passive entry antenna for at least 15 seconds to ensure that the double sided tape is fully adhered to the front crossmember.

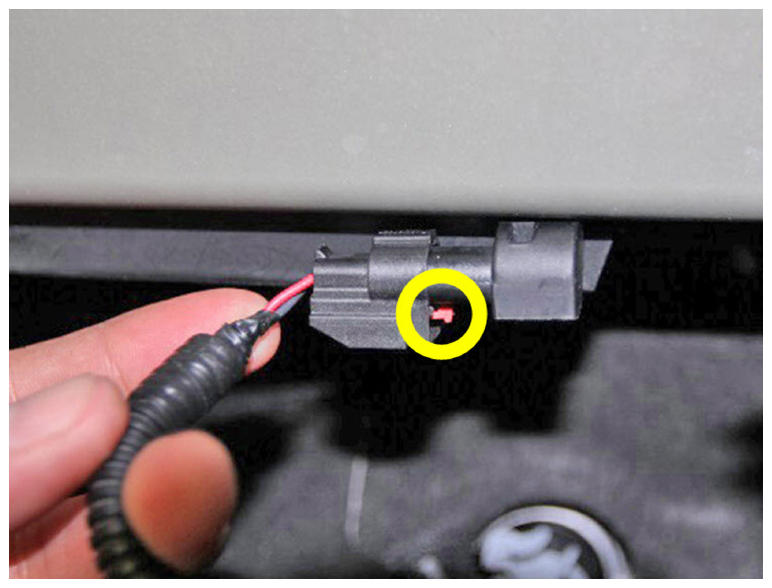

8. Connect the electrical connector to the passive entry antenna.
   NOTE: Remember to push the red locking tab in.

   Courtesy of TESLA, INC.
