Light - Map - Front - Remove and Replace: Removal

  1. Remove the headliner. See HEADLINER (REMOVE AND REPLACE) .
  2. Place the headliner on a clean work surface with the upholstered side facing down.

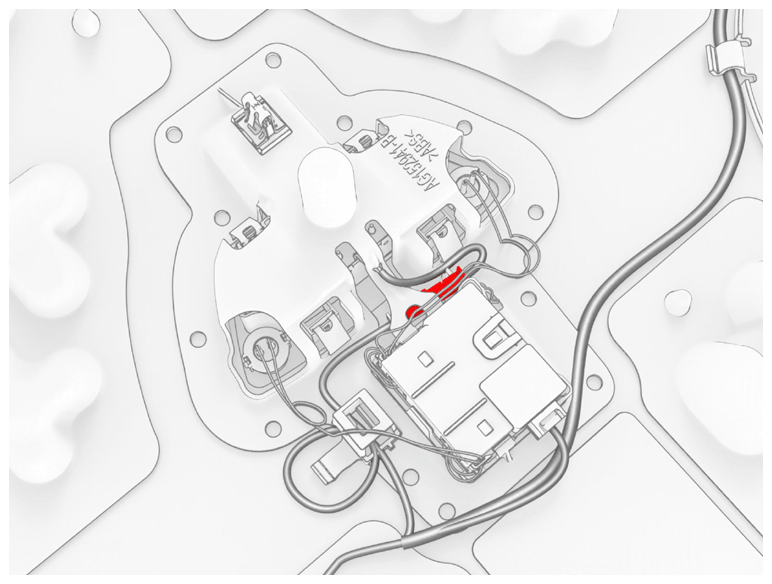

  3. Disconnect the headliner electrical harness from the map light connector.
    G15203146Courtesy of TESLA, INC.

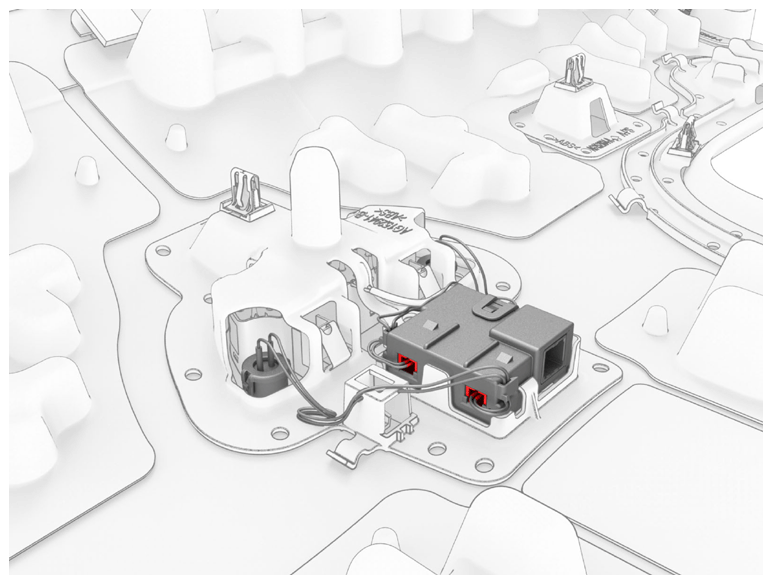

  4. If installed, disconnect the intrusion sensor electrical harness connectors (x2) from the intrusion sensor module.
    G15203147Courtesy of TESLA, INC.

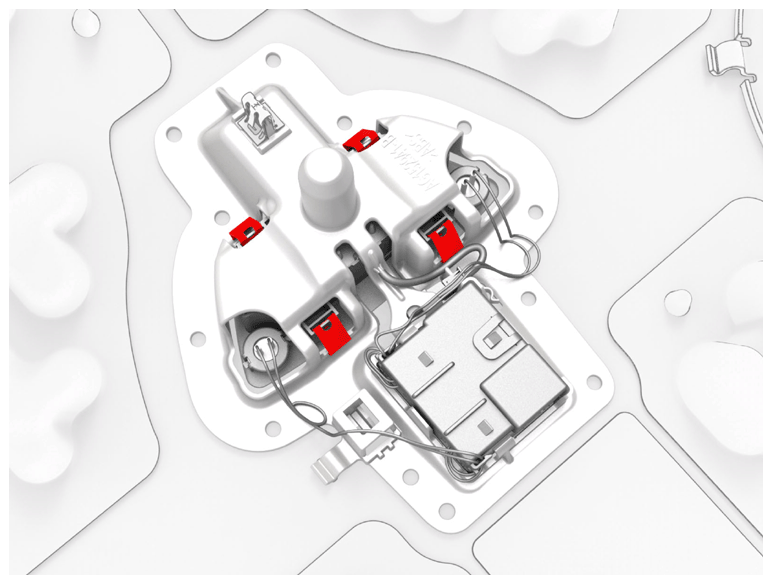

  5. Release the clips (x4) that attach the map light to the headliner, remove the map light from the headliner, and then pass the map light connector through the headliner.
    NOTE: If installed, make sure that the intrusion sensor connectors do not catch on the headliner.
    G15203148Courtesy of TESLA, INC.

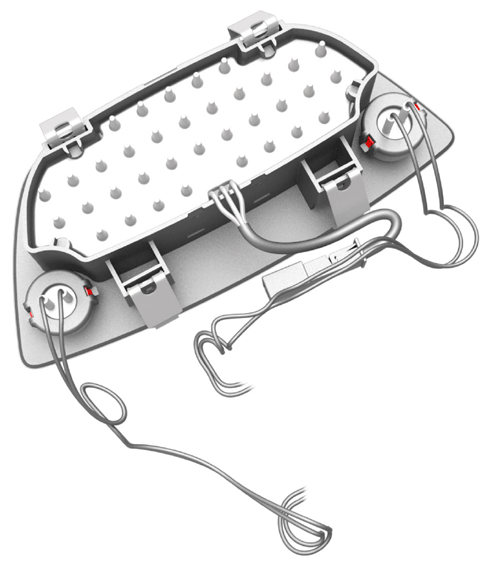

  6. If installed, release the clips (x2) that attach each intrusion sensor to map light, and remove the sensors (x2) from the map light.
    G15203149Courtesy of TESLA, INC.
