- Remove the front seat inner riser Riser - Front Seats - Inner (Remove And Replace)
.

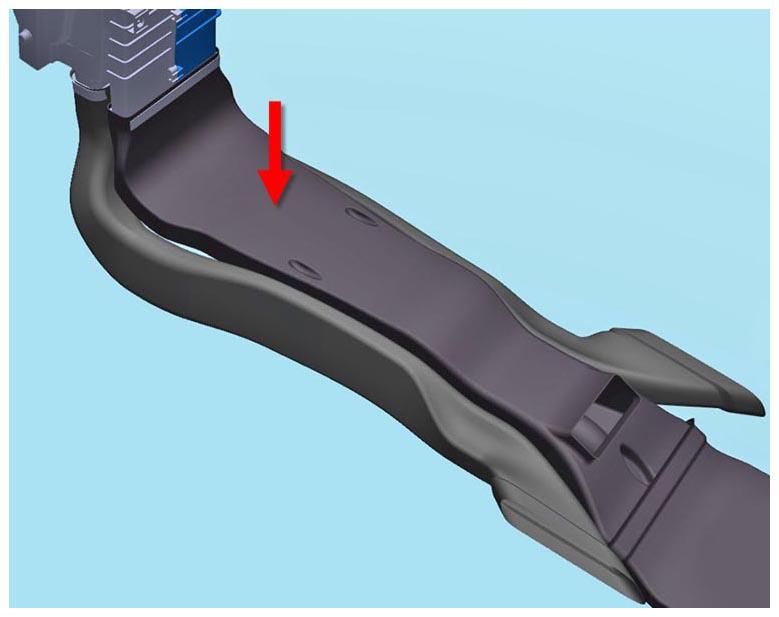

- Remove the front HVAC outlet duct.
WARNING:
Make sure LV is disconnected before continuing to the next step.
NOTE:
Components have been removed in this graphic to aid clarity.
 Courtesy of TESLA, INC.
|

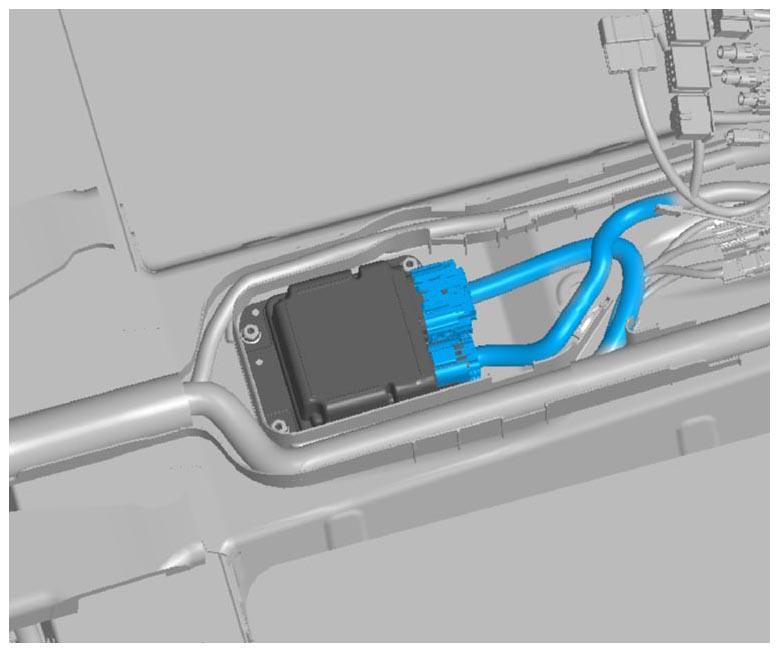

- Disconnect the harness connectors (x2) from the restraint control module (RCM).
NOTE:
Components have been removed in this graphic to aid clarity.
 Courtesy of TESLA, INC.
|

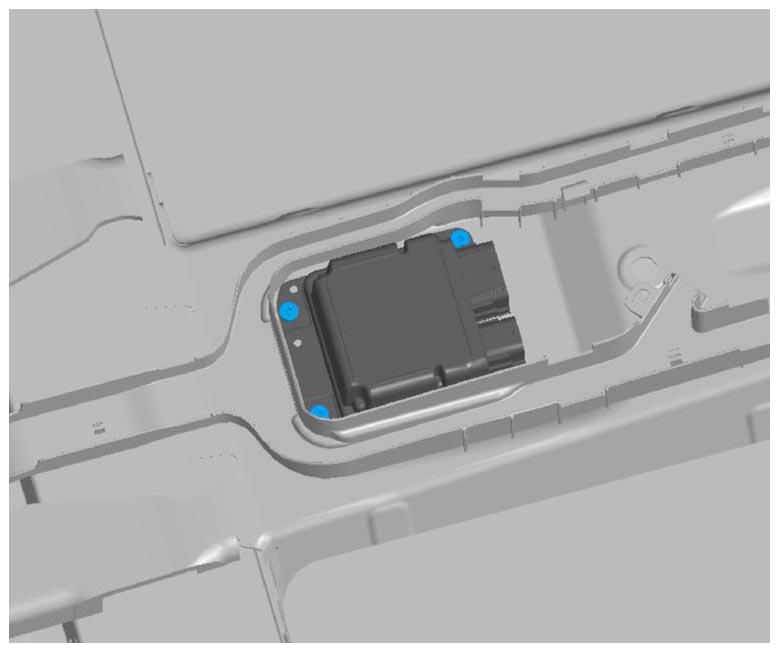

- Remove the T30 Torx bolts (x3) that attach the RCM to the body of the vehicle (torque 8 N.m).
NOTE:
If necessary, carefully peel back the carpeting to gain access to the bolts.
NOTE:
Components have been removed in this graphic to aid clarity.
 Courtesy of TESLA, INC.
|
- Remove the RCM from the vehicle.
