Connector End View - X154 [4/25/2019 - 10/20/2019]

Location:

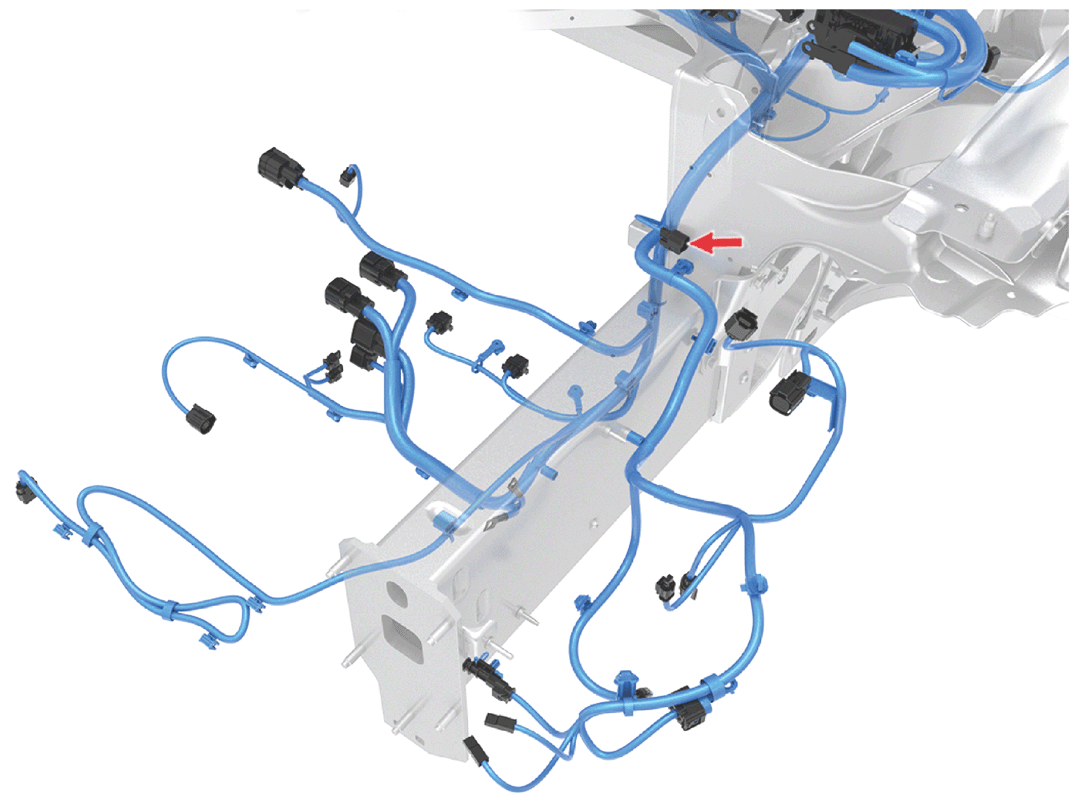

Fig 1: Connector Component Location - X154 [4/25/2019 - 10/20/2019]
G15221366Courtesy of TESLA, INC.

Connector Detail: MOLEX 34062-0023

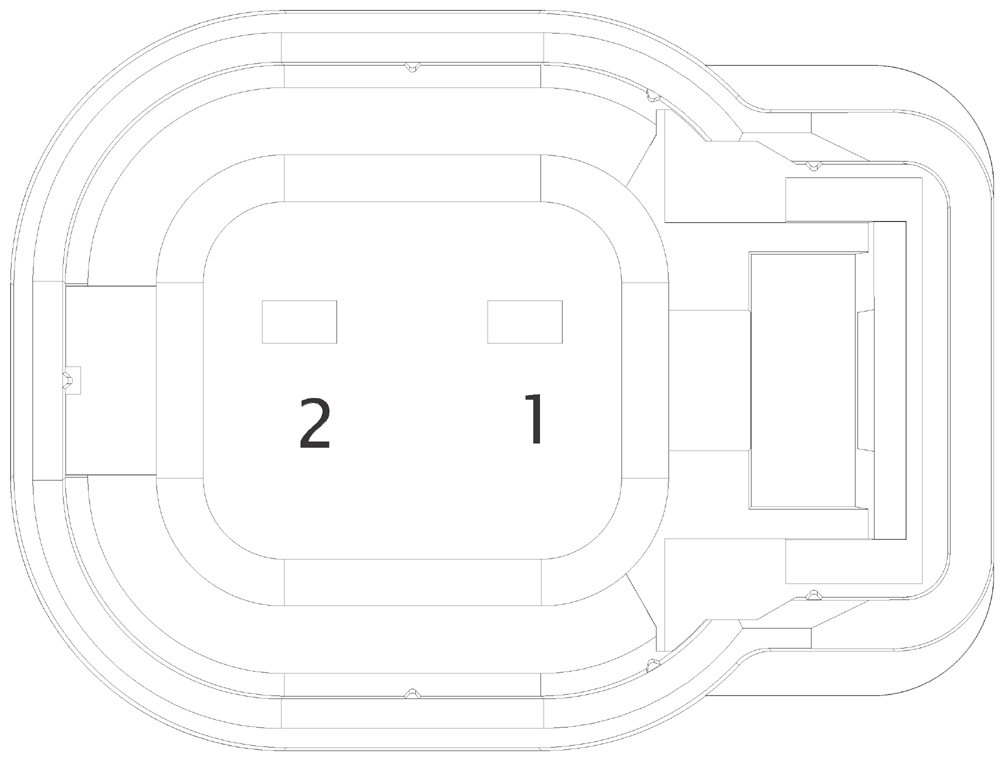

Fig 2: Connector End View - X154 [4/25/2019 - 10/20/2019]
G15221367Courtesy of TESLA, INC.

Color: BK

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination Terminal Seal
1     SN X151-19 34083-2002 7158-3030-50
2     SN X151-8 34083-2002 7158-3030-50
