Light - Map - Front - Remove and Replace: Installation

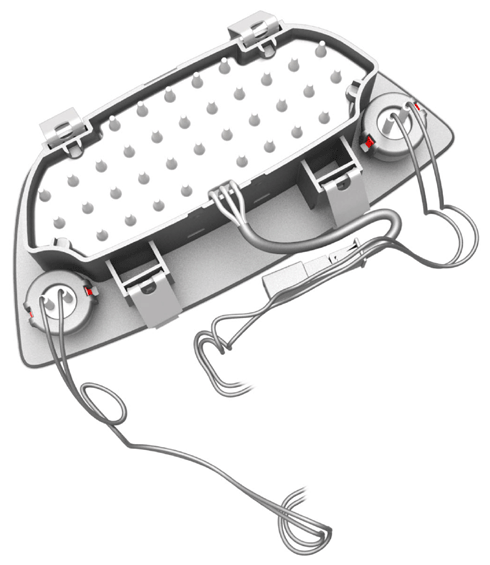

  1. If previously removed, install the intrusion sensors (x2) into the map light, and then fasten the clips that attach each sensor to the map light.
    G15203150Courtesy of TESLA, INC.

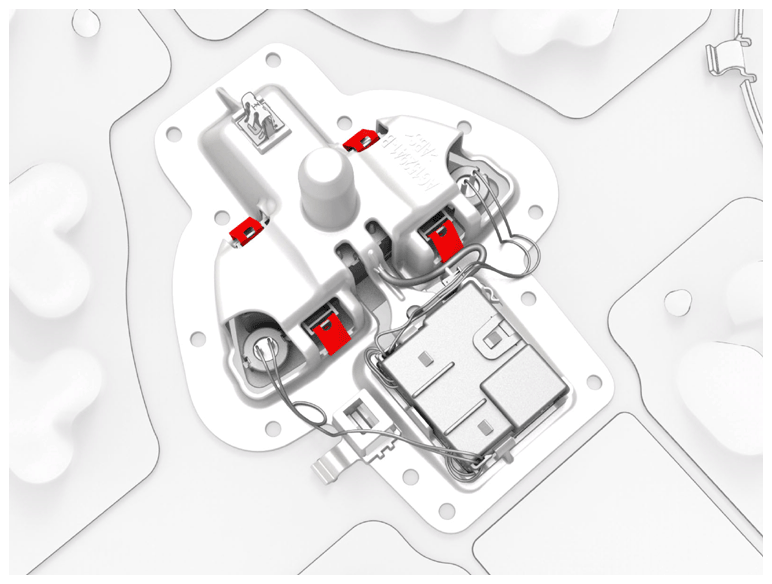

  2. Pass the map light connector through the headliner, install the map light into the headliner, and then fasten the clips (x4) that attach the map light to the headliner.
    NOTE: If installed, make sure that the intrusion sensor connectors pass through the headliner.
    G15203151Courtesy of TESLA, INC.

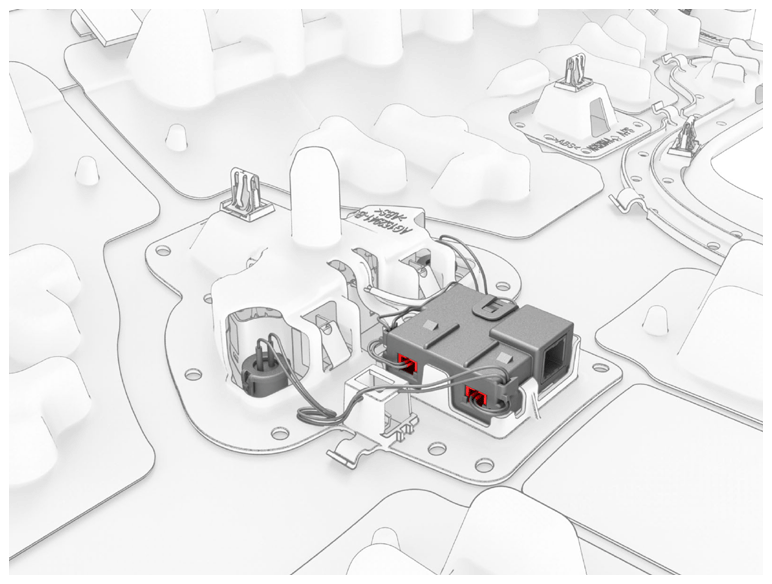

  3. If installed, connect the intrusion sensor electrical harness connectors (x2) to the intrusion sensor module.
    G15203152Courtesy of TESLA, INC.

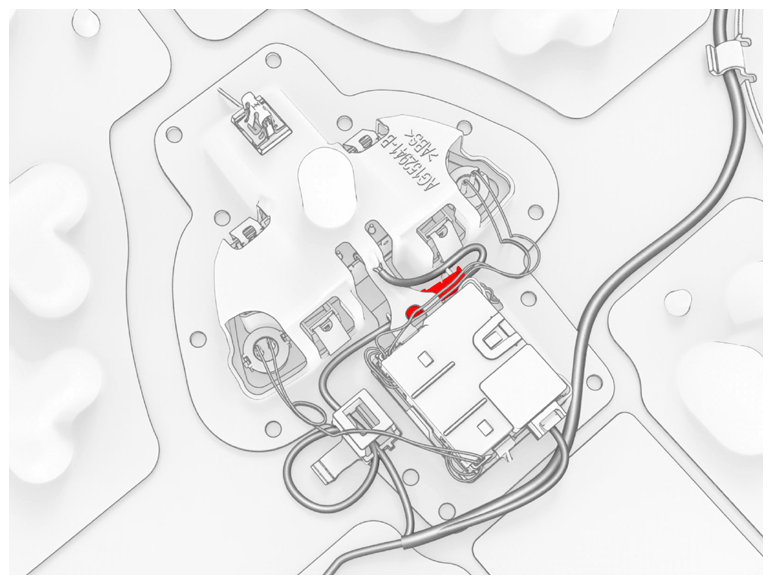

  4. Connect the headliner electrical harness to the map light connector.
    G15203153Courtesy of TESLA, INC.
  5. Install the headliner. See HEADLINER (REMOVE AND REPLACE) .
