Module - Autopilot - ECU - 1st Generation - Remove And Replace: Removal
- Remove the glove box Glove Box (Remove And Replace)
.
- Disconnect 12V power DISCONNECT 12V POWER .

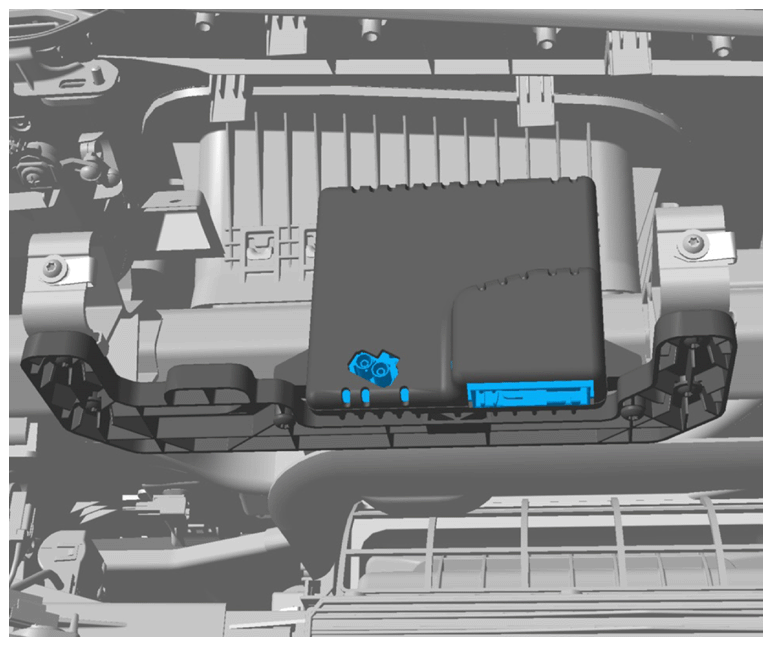

- Disconnect the electrical connectors from the Autopilot ECU.
 Courtesy of TESLA, INC.
|

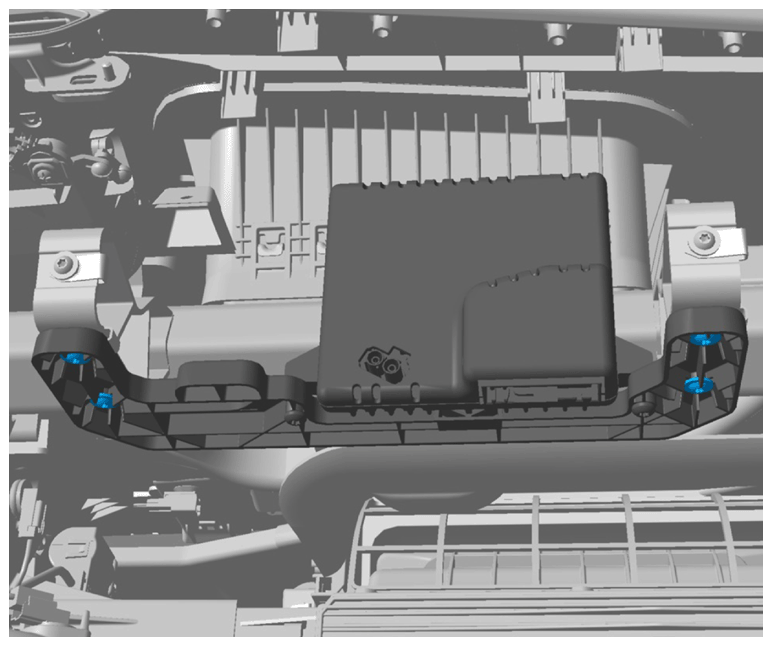

- Remove the screws (x4) that secure the Autopilot ECU bracket to the cross car beam (torque 3.5 N.m).
 Courtesy of TESLA, INC.
|
- Remove the Autopilot ECU and bracket from the vehicle.

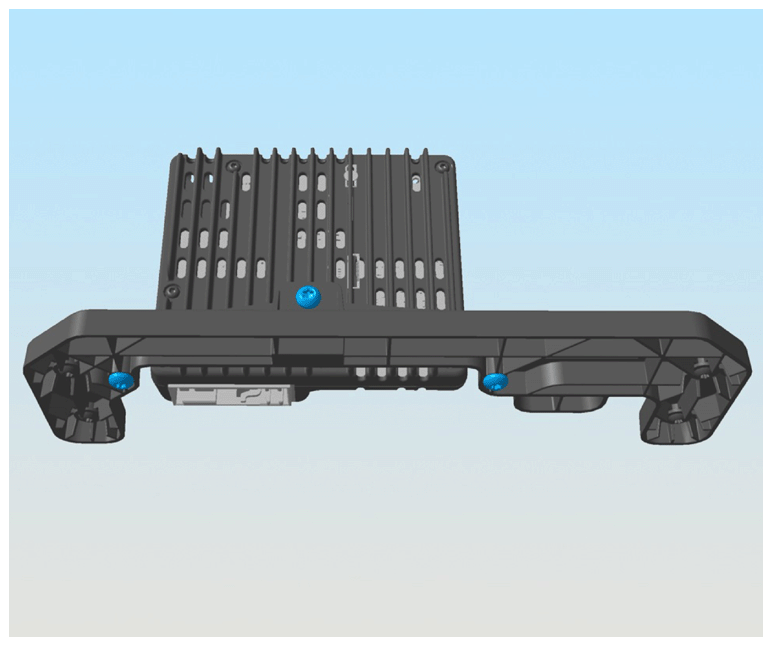

- Remove the screws (x3) that secure the Autopilot ECU to the bracket (torque 1.4 N.m).
 Courtesy of TESLA, INC.
|
- Release the Autopilot ECU from the bracket.
