Wiper Motor Assembly - Remove And Replace: Removal

  1. Disconnect 12V power DISCONNECT 12V POWER .
  2. Remove the cowl screen panel Panel - Cowl Screen (Remove And Replace) .

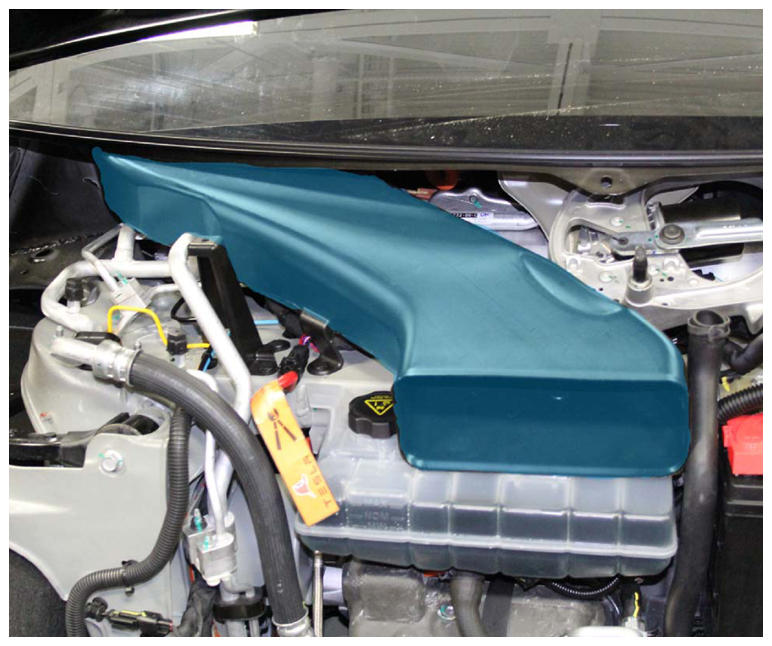

  3. Pull the HVAC duct forward to remove it from the vehicle.
    G15203355Courtesy of TESLA, INC.

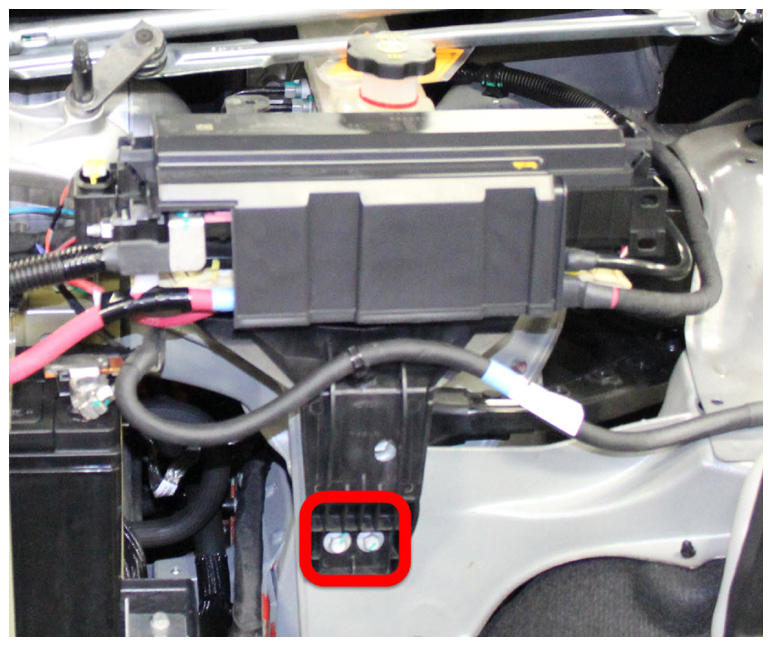

  4. Release the front bolts (x2) that secure the fuse box bracket to the body (torque 7 N.m).
    G15203356Courtesy of TESLA, INC.

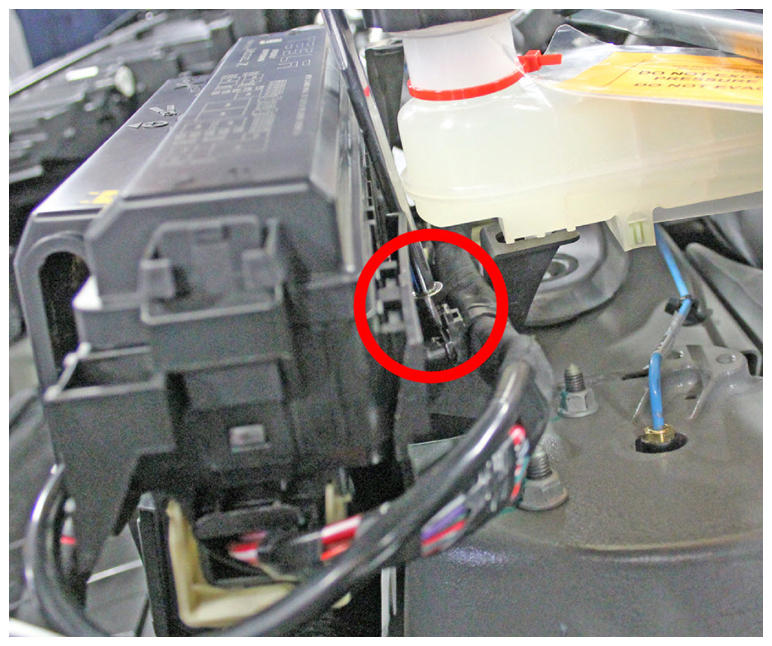

  5. Release the rear bolt that secures the fuse box bracket to the body (torque 5 N.m).
    G15203357Courtesy of TESLA, INC.
  6. Unclip the fusebox harness from the rear of the fuse box.
  7. Unclip the fusebox harness from the 12V battery tiedown.
  8. Gently pull the fusebox forward.

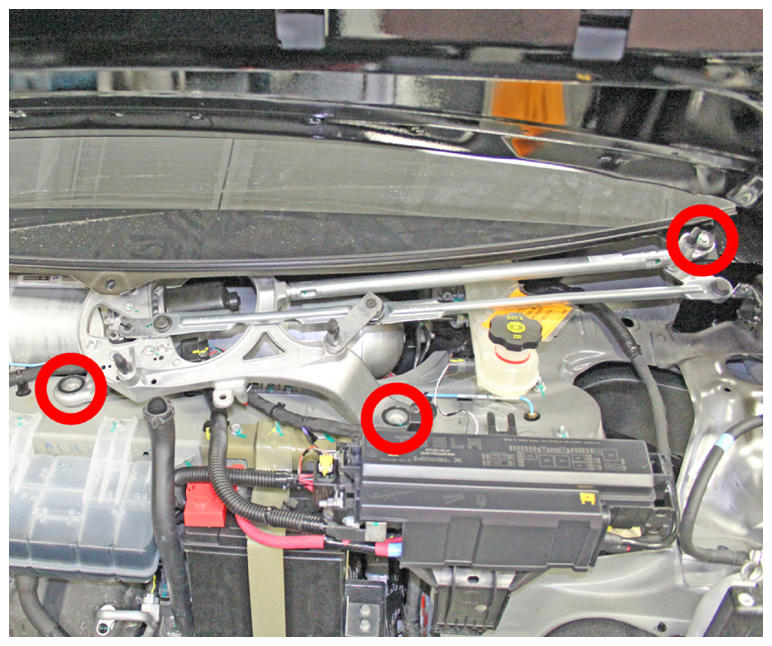

  9. Release the bolts that secure the wiper motor to the body (torque 9 N.m), but do not remove the motor at this time.
    G15203358Courtesy of TESLA, INC.

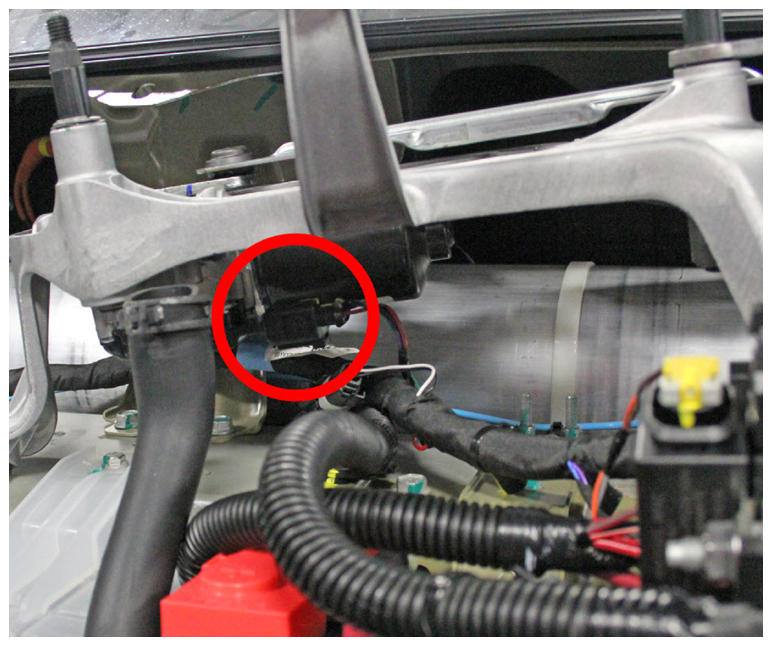

  10. Gently pull the wiper motor forward and disconnect the low voltage harness.
    CAUTION: Do not damage the fusebox.
    G15203359Courtesy of TESLA, INC.
  11. Remove the wiper motor from the vehicle.
