Air Spring Module - Front - RH - Remove And Replace: Installation

CAUTION: Replace all nylon-insert locknuts.

CAUTION: Replace all patchbolt(s).

NOTE: Clean the affected areas before installation.

CAUTION: Only fully tighten suspension nuts and bolts when the vehicle is on a 4-post lift and the suspension is in the ride height position.

Installation procedure is the reverse of removal, except for the following:

Install and hand-tighten a new collet and nut (VOSS fitting).

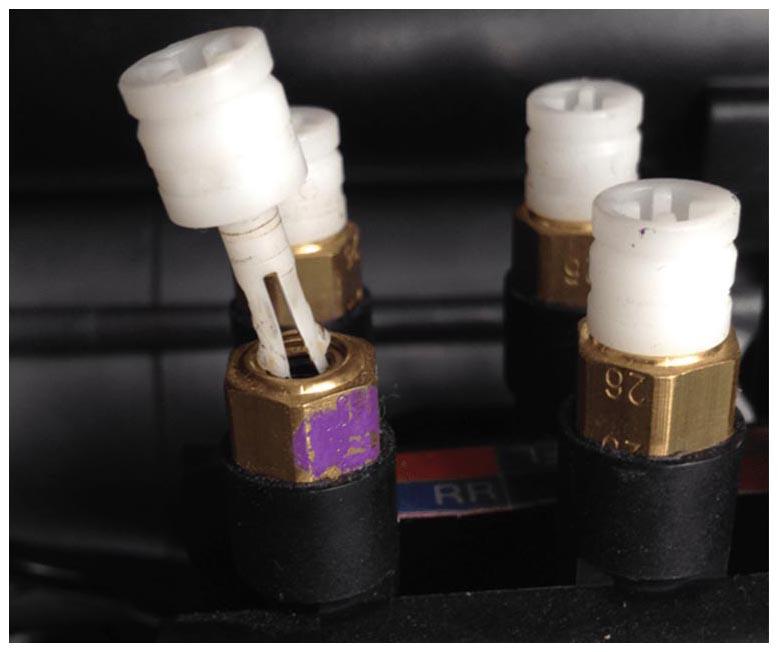

NOTE: A plastic plug holds the fitting together before and during installation.

Courtesy of TESLA, INC.
Remove the plastic plug from the new fitting.
Tighten the new fitting (torque 2 N.m).
Insert the air suspension line fully into the fitting, and then lightly pull on the line to make sure that it is secure.
Make sure that all air suspension lines are securely reconnected before continuing.
Refill the air suspension system with Nitrogen. See AIR SUSPENSION - PRESSURIZE/DEPRESSURIZE - FULL SYSTEM .
NOTE: If the front RH air spring module was replaced because of a leak, perform the additional steps to purge the accumulated moisture from the dryer.
Pressurize the front RH air spring module. See AIR SUSPENSION - PRESSURIZE/DEPRESSURIZE - ONE AIR SPRING .
Raise the vehicle on a 4-post lift and torque all suspension components while the vehicle is at ride height.
Refer to the Alignment Requirement tables to determine if an alignment check (AC) or full adjustment (FA) is necessary. See ALIGNMENT REQUIREMENT - SUSPENSION .
