Buckle Assembly - 3rd Row - Remove And Replace: Remove

  1. Remove the 3rd row seat assembly Seat Assembly - 3rd Row (Remove And Replace) .
  2. Remove the center recliner cover.
    G15205529Courtesy of TESLA, INC.

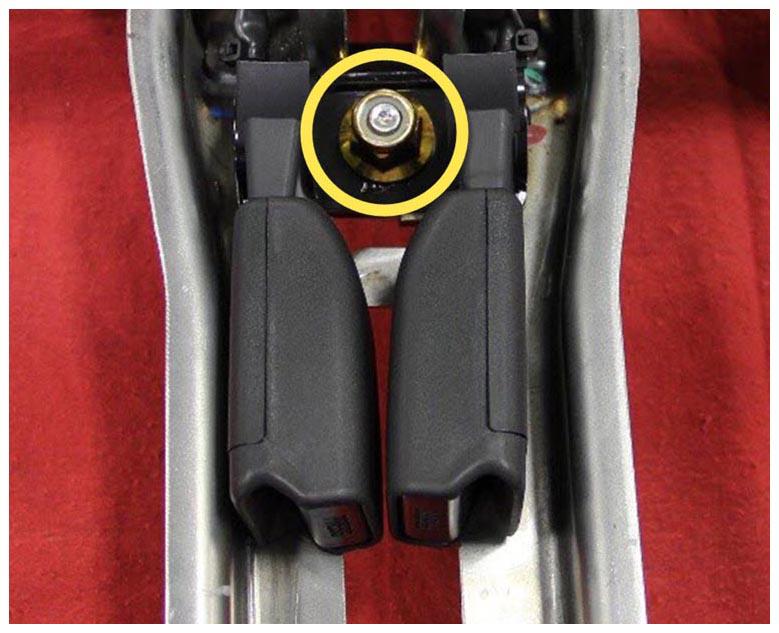

  3. Remove and discard the bolt and nut that secure the seatbelt buckle assembly to the seat frame (torque 45 N.m).
    G15205530Courtesy of TESLA, INC.
  4. Remove the seat belt buckle assembly from the seat frame.
