Firmware Update

NOTE: It is not necessary to connect the diagnostic cable to the vehicle.

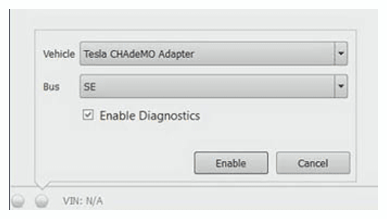

In the bottom left corner of the screen, click the gray circle on the right. A popup box appears:
1. In the Vehicle field, select Tesla CHAdeMO Adapter .
2. In the Bus field, select SE .
3. Ensure that the Enable Diagnostics box is checked.
Courtesy of TESLA, INC.
Click Enable .
NOTE: The connection is confirmed if the second circle turns green.
In Toolbox, select Panels > Charging > CHAdeMO Adapter Firmware Update .
NOTE: If the CHAdeMO Adapter Firmware Update button is not present:
1. Select Options > Plugins
2. Ensure that the checkbox for CHAdeMO is checked.
3. In the top right corner of the window, click Enable .
Click the Start/Play button and follow the onscreen instructions.
