Siren - Battery Backed - Remove And Replace: Removal

  1. Open the hood.
  2. Remove the underhood aprons Assembly - Underhood Apron - Front (Remove And Replace) .

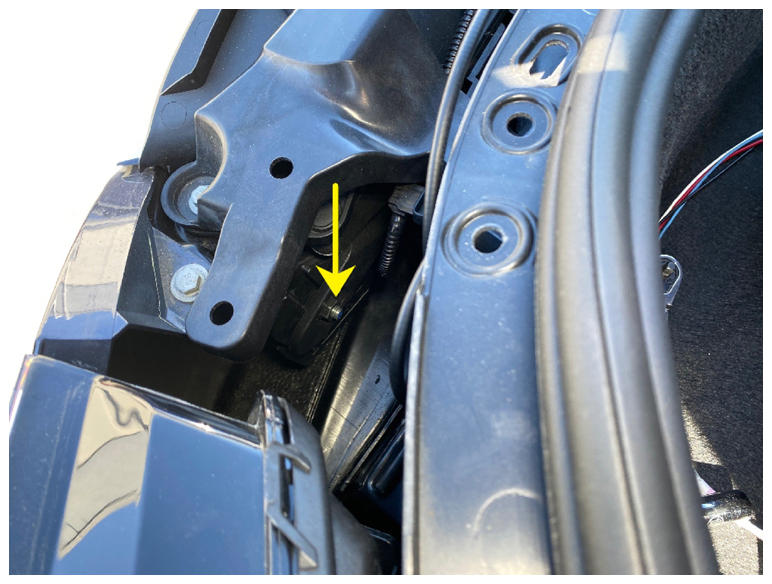

  3. Remove the nut that attaches the siren to the bracket on the LH side of the front duct (torque 8 N.m).
    G15203331Courtesy of TESLA, INC.

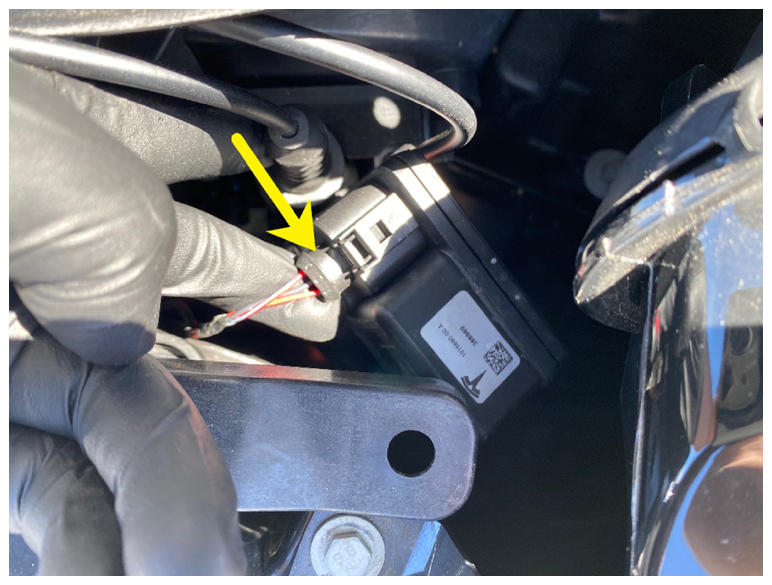

  4. Disconnect the electrical connector from the siren.
    G15203332Courtesy of TESLA, INC.
  5. Remove the siren from the vehicle.
