Antenna - Passive Entry - Rocker - LH - Remove And Replace: Remove

  1. Remove the rocker panel molding Molding - Rocker Panel - LH (Remove And Replace) .
  2. Disconnect 12V power DISCONNECT 12V POWER .

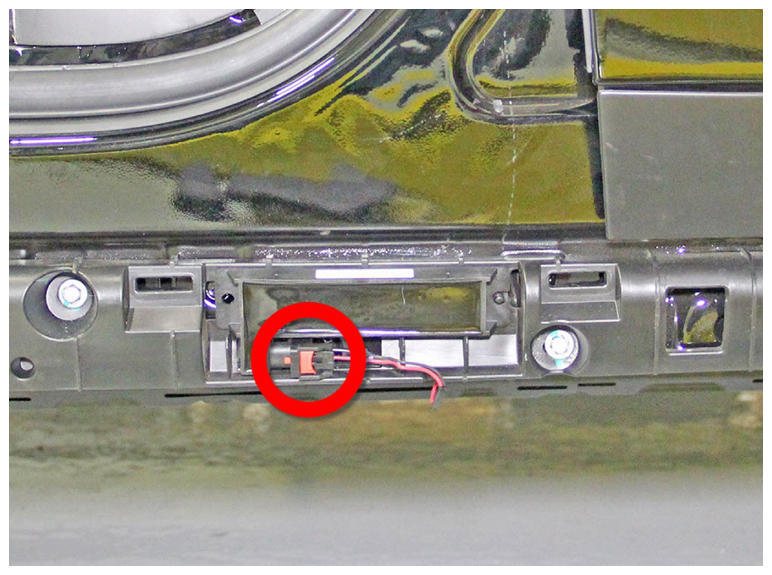

  3. Disconnect the electrical connector from the antenna.
    G15203325Courtesy of TESLA, INC.
  4. Use a trim tool to carefully release the antenna from the rocker panel carrier.
