Antenna - Passive Entry - Front - Remove And Replace: Removal

  1. Remove the HEPA filter duct Duct - HEPA Filter (Remove And Replace) .
  2. Move the coolant reservoir away from the working area:
    1. Ensure that the reservoir cap is fully secured.

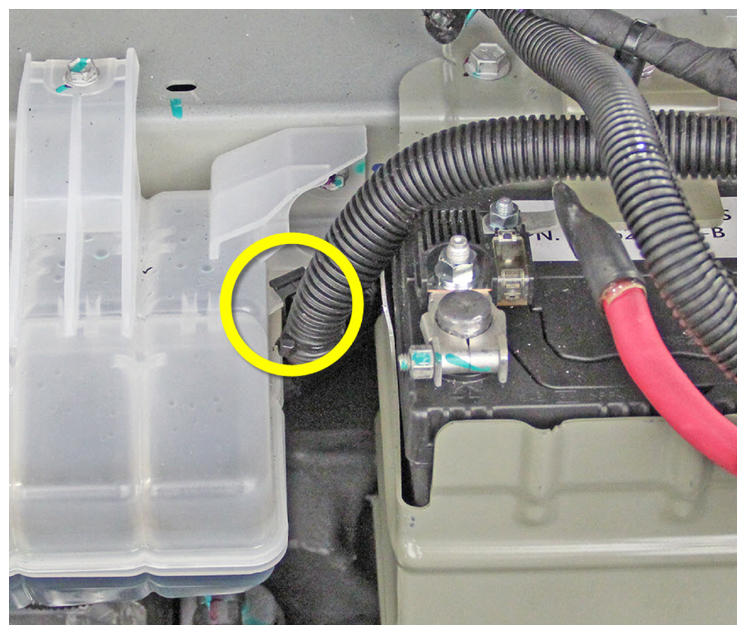

    2. Release the 12V harness clip from the coolant reservoir.
      G15203312Courtesy of TESLA, INC.
    3. Disconnect the coolant fluid level sensor electrical connector.
      G15203313Courtesy of TESLA, INC.

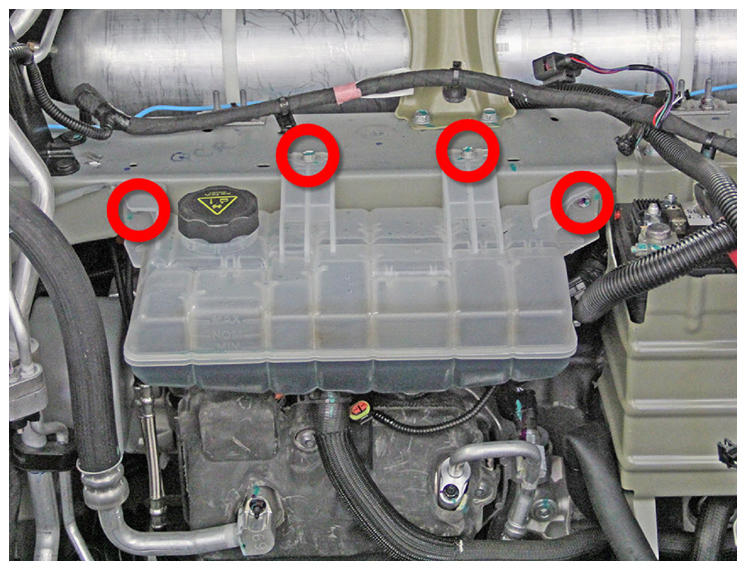

    4. Remove the bolts (x4) that secure the coolant reservoir to the front crossmember (torque 6 N.m).
      G15203314Courtesy of TESLA, INC.
    5. Move the coolant reservoir towards the front of the vehicle.

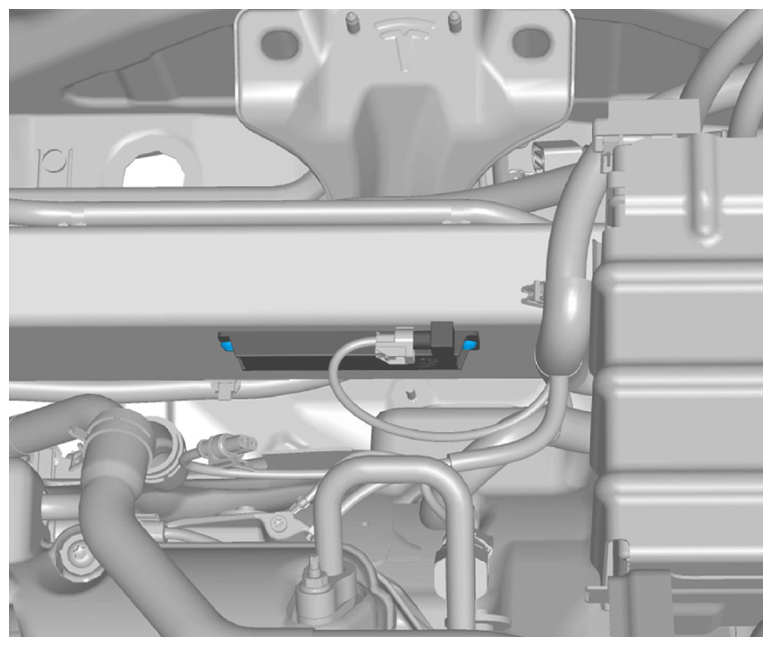

  3. Remove the screws (x2) that secure the front passive entry antenna to the bottom of the front crossmember.
    G15203315Courtesy of TESLA, INC.
  4. Disconnect the electrical connector from the passive entry antenna:

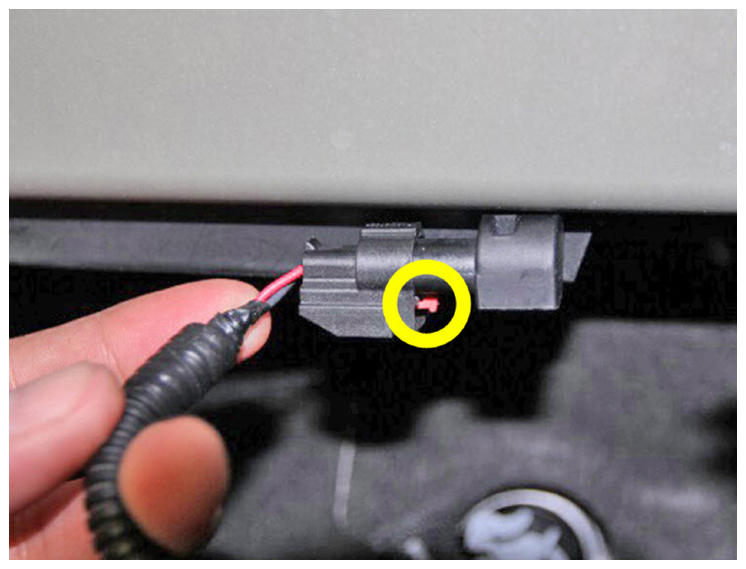

    1. Pull the red locking tab away from the connector.
      G15203316Courtesy of TESLA, INC.

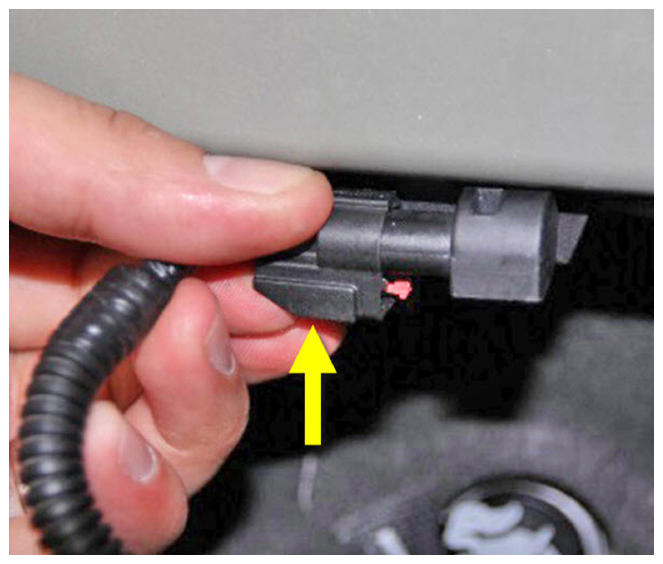

    2. Compress the black tab.
      G15203317Courtesy of TESLA, INC.
    3. Release the electrical connector.

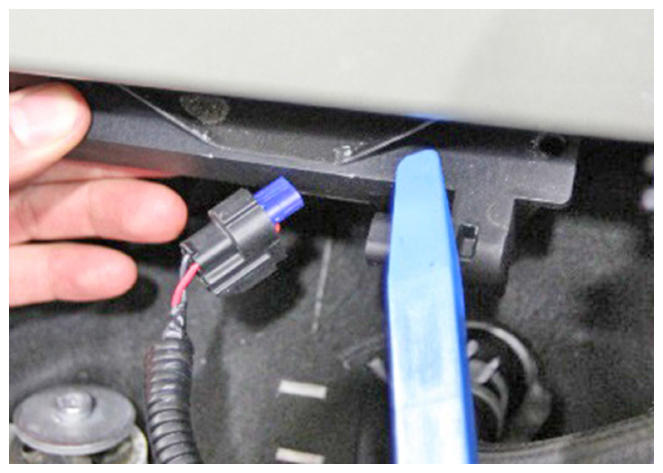

  5. Use a trim tool to carefully release the passive entry antenna from the bottom of the front crossmember.
    G15203318Courtesy of TESLA, INC.
  6. Remove the passive entry antenna from the vehicle.
