E-Fuse Module - Remove And Replace: Removal
- Disconnect 12V power DISCONNECT 12V POWER .
- Remove the wiper motor assembly WIPER MOTOR ASSEMBLY (REMOVE AND REPLACE) .

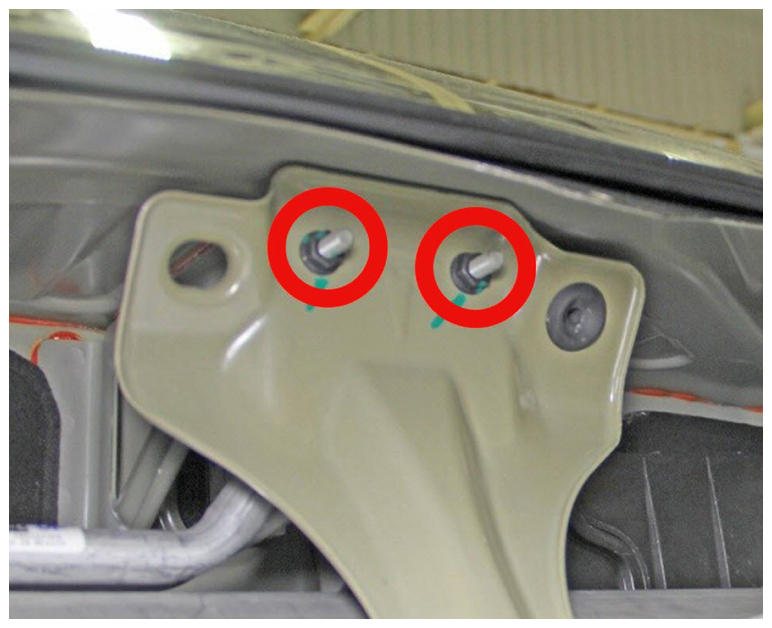

- Remove the bolts (x2) and the nuts (x2) that secure the center support bracket to the body, and then remove the bracket from the vehicle (torque 20 N.m).NOTE: Upper bolt locationNOTE: Lower bolt location

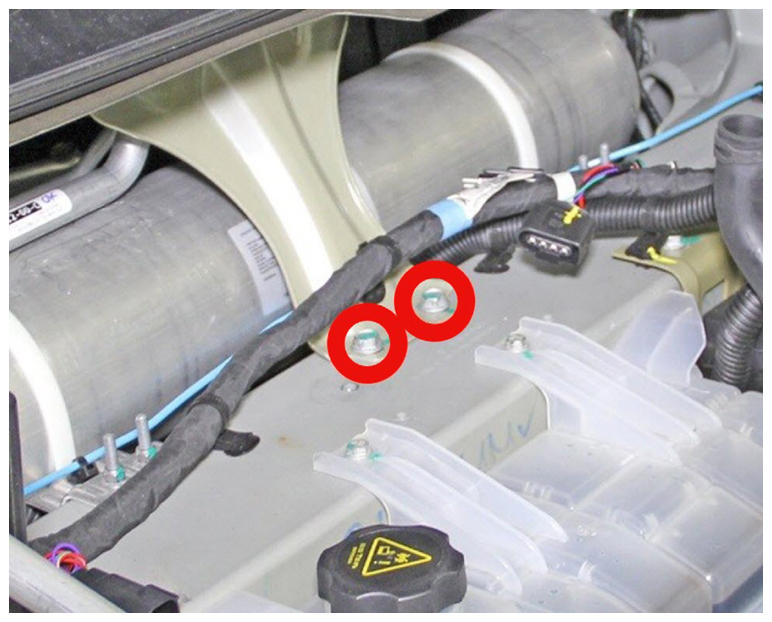

- Remove the bolts (x4) that secure the air suspension reservoir brackets to the body (torque 6 N.m).

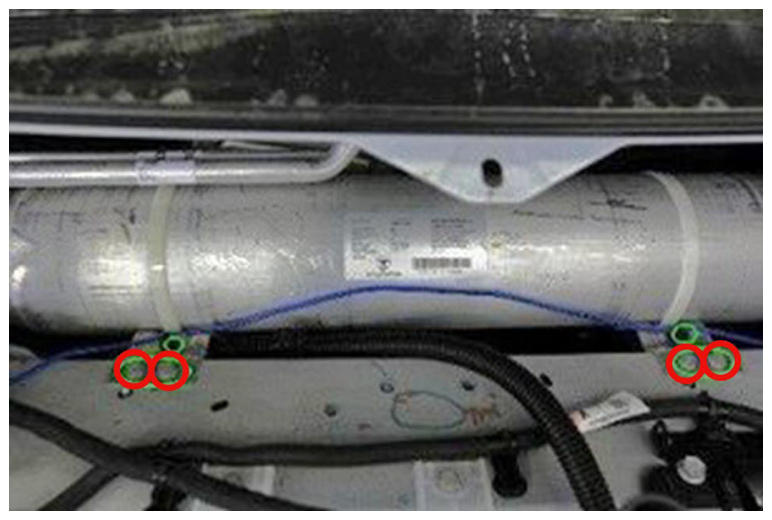

- Remove the fir tree clips (x2) and the bolts (x4) that secure the air suspension reservoir to the body, and then move the air suspension reservoir aside for access.

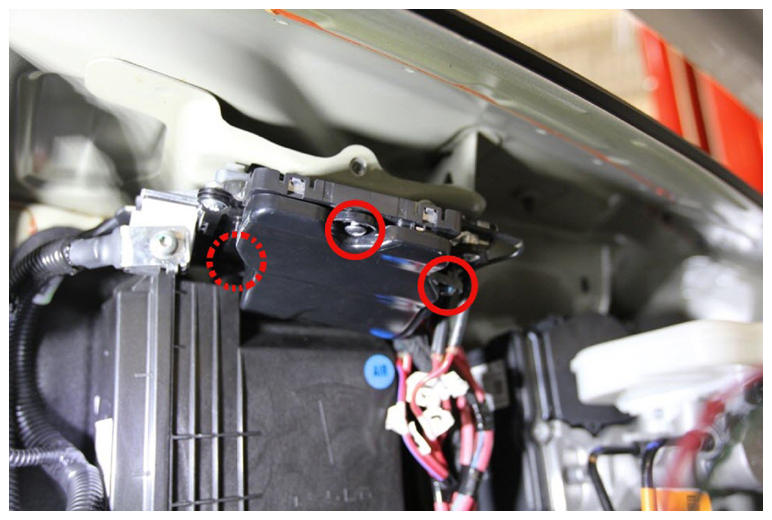

- Remove the screws (x3) that secure the cover to the E-fuse module (torque 2.7 N.m).
- Release the tabs (x2), and then remove the transparent cover from the side of the E-fuse module.

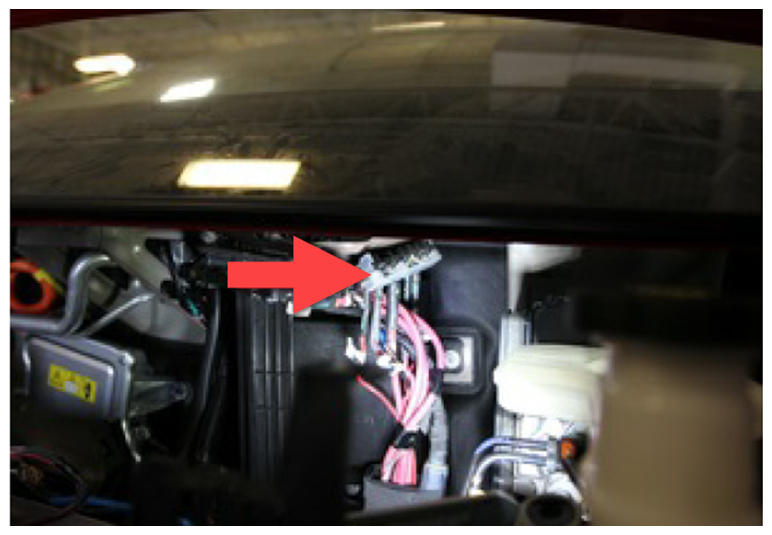

- Remove the bolt that secures DCDC positive cable to the E-fuse module (torque 7 N.m).

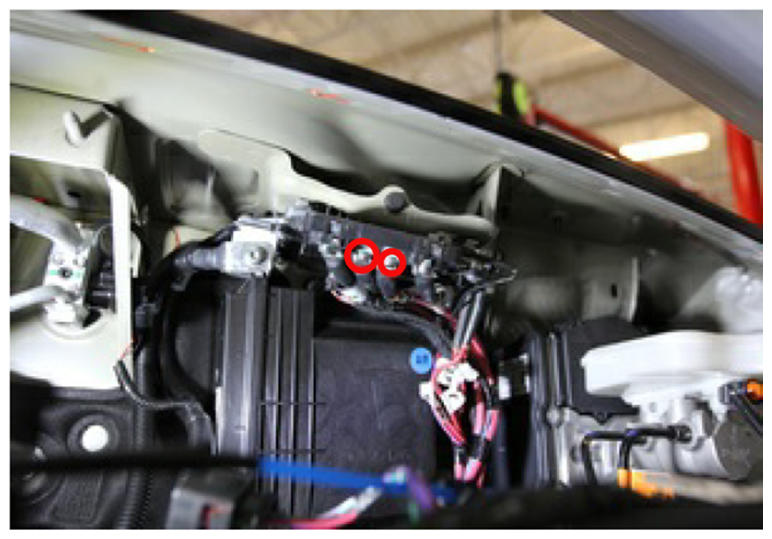

- Remove the bolts (x2) that secure the large cables to front of the E-fuse module (torque 5 N.m).
Tip: Note the location of the labeled wires during removal.

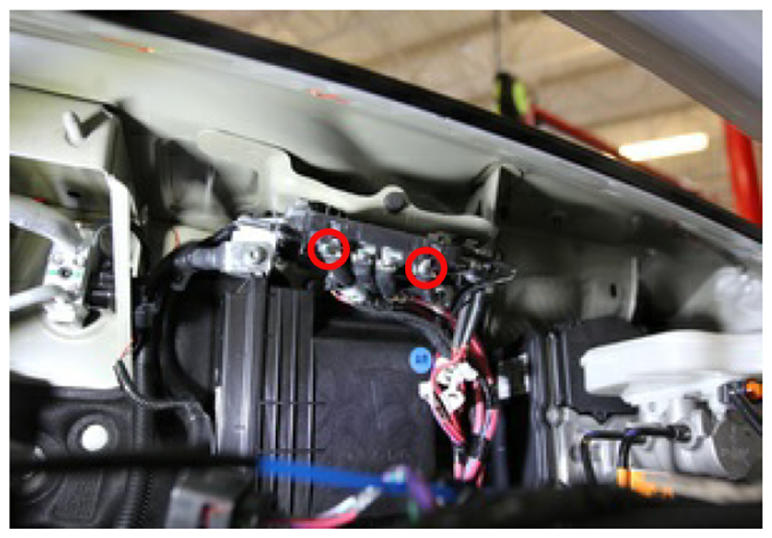

- Remove the screws (x2) that secure the small cables to front of the E-fuse module (torque 5 N.m).
Tip: Note the location of the labeled wires during removal.

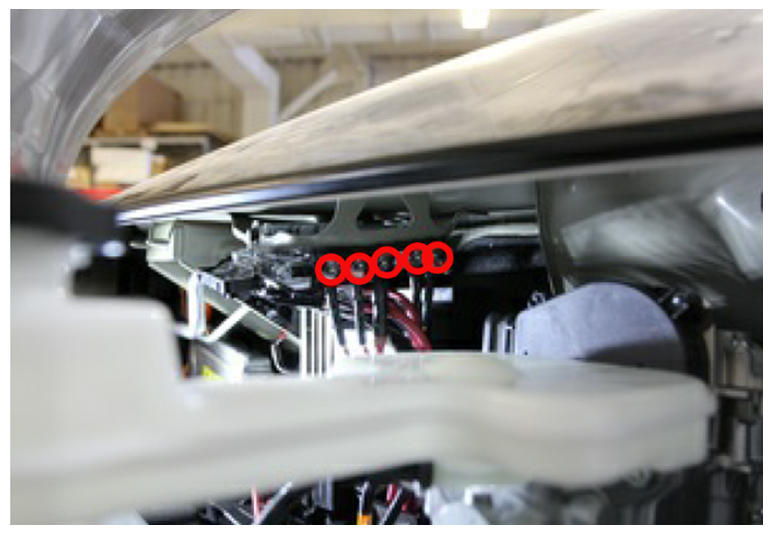

- Remove the screws (x5) that secure the small cables to side of the E-fuse module (torque 4 N.m).
Tip: Note the location of the labeled wires during removal.

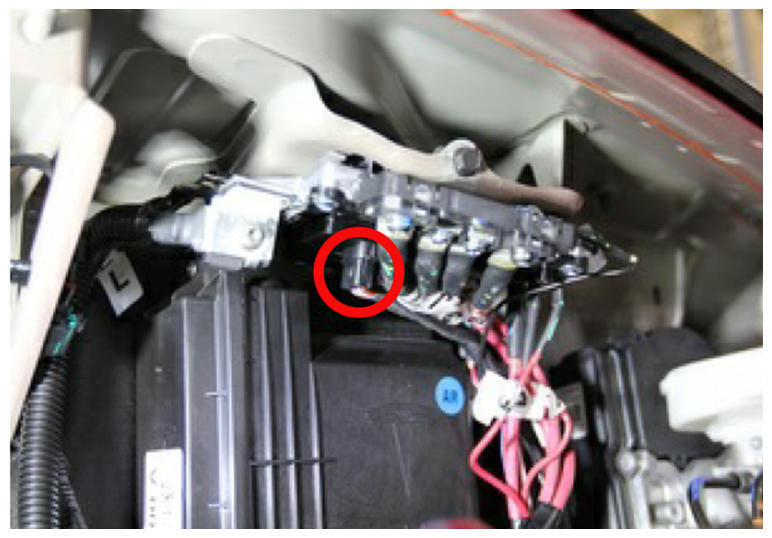

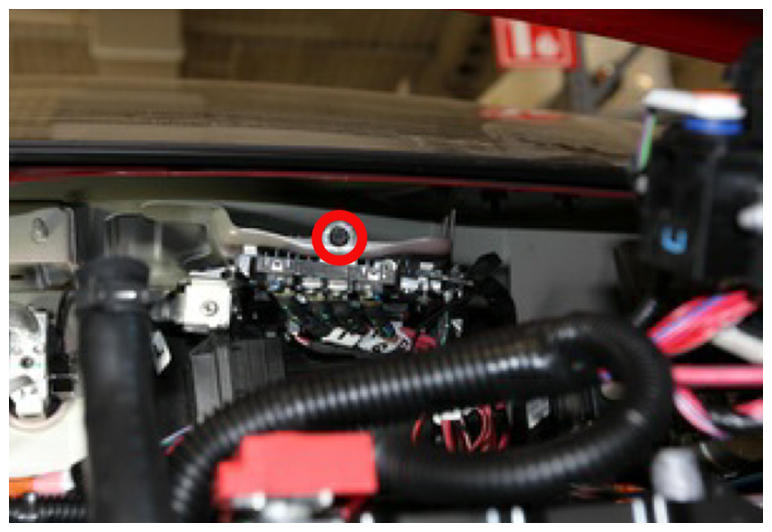

- Remove the bolt that secures the ground cable to the E-fuse module (torque 4 N.m).
- Release the red locking tab, and then disconnect the logic connector from the E-fuse module.

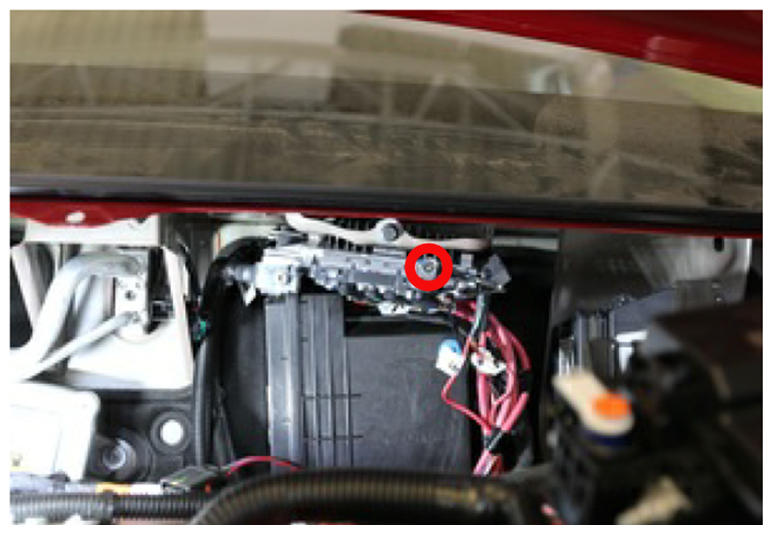

- Remove the bolt that secures the E-fuse module to vehicle (torque 6 N.m).

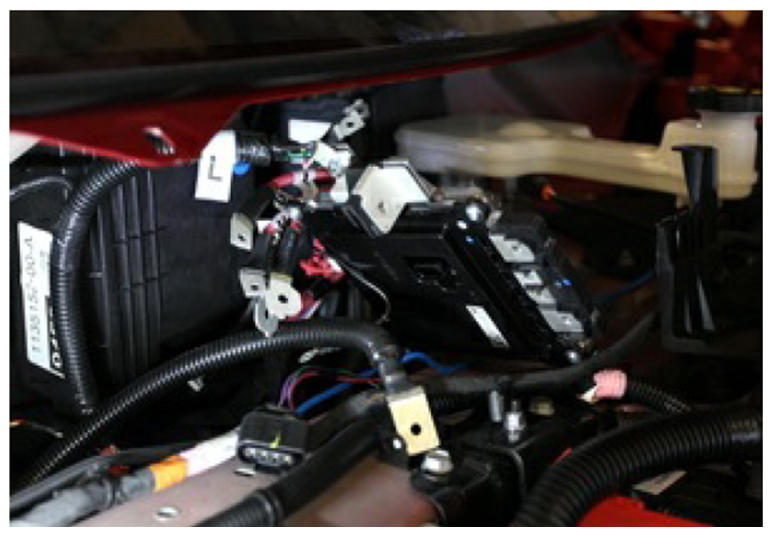

- Release the tabs (x2), slide the E-fuse module back to release tabs, and then tilt the front down to release the E-fuse module from the bracket.
- Remove the bolt that secures the 12V power supply cable to the E-fuse module, and then remove the E-fuse module from vehicle (torque 7 N.m).
