Connector End View - X230 [4/25/2019 - 10/20/2019]

Location:

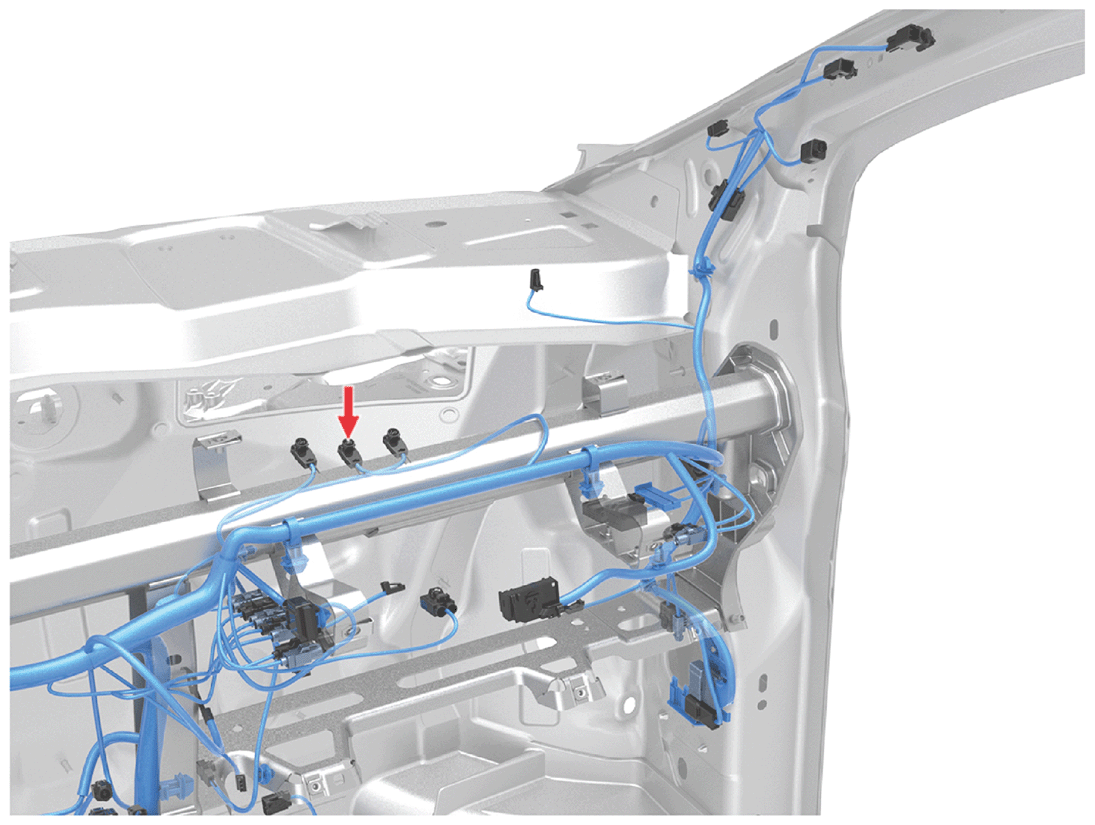

Fig 1: Connector Component Location - X230 [4/25/2019 - 10/20/2019]
G15221490Courtesy of TESLA, INC.

Connector Detail: YAZAKI 7387-7215-70

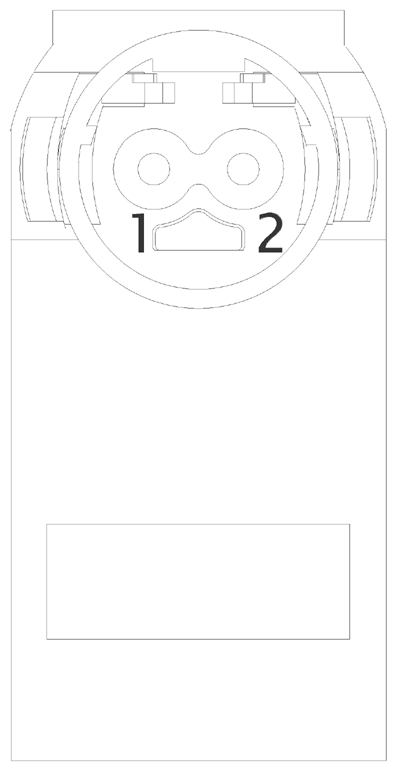

Fig 2: Connector End View - X230 [4/25/2019 - 10/20/2019]
G15221491Courtesy of TESLA, INC.

Color: YE

Serviceability: Connector Pigtail

Cavity Color Size Plate Destination Terminal
1     AU X200-22 PIA-SRS-S
2     AU X200-21 PIA-SRS-S
