Module - Autopilot - ECU - 2nd Generation (RHD) - Remove And Replace: Removal
- Open both front doors and lower both front windows.
- Remove the glove box, Glove Box (Remove And Replace)
.
- Power down the vehicle using the touchscreen.
- Disconnect the electrical connectors from the LH side of the Autopilot ECU.
 Courtesy of TESLA, INC.
|

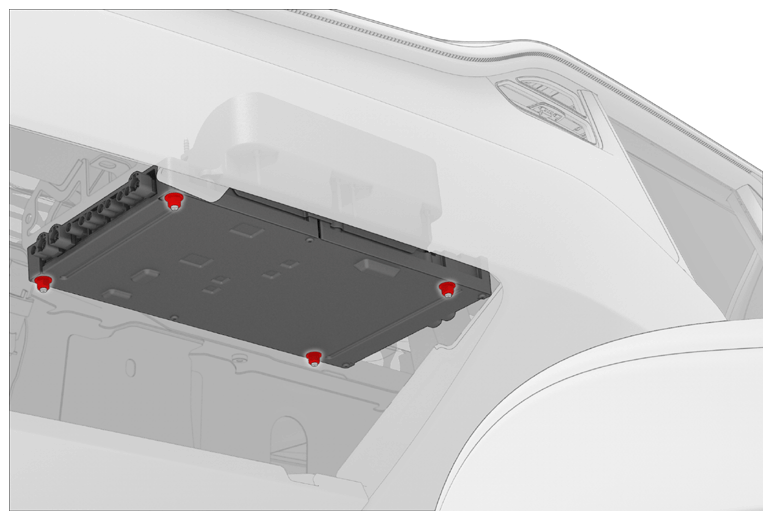

- Remove and discard the nuts (x4) that attach the Autopilot ECU to the cross car beam (torque 5 N.m).
 Courtesy of TESLA, INC.
|

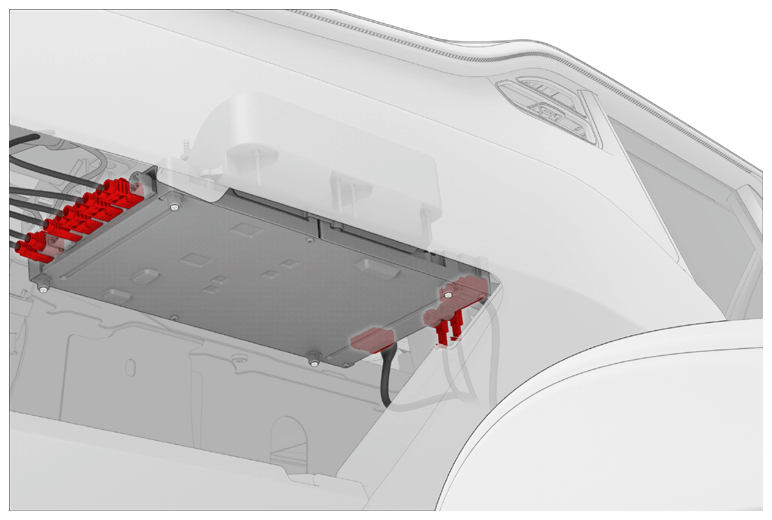

- Disconnect the electrical connectors from the RH side of the Autopilot ECU, and then remove the Autopilot ECU from the vehicle.
 Courtesy of TESLA, INC.
|
